AGSViewpoint Class Reference

Description

Represents the view location of AGSMapView or AGSSceneView.

Instances of this class represent a view location of AGSMapView or AGSSceneView

Since

100

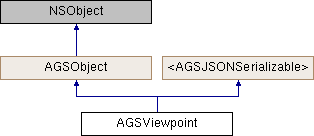

Inheritance diagram for AGSViewpoint:

Instance Methods
(instancetype)	- initWithCenter:scale:
(instancetype)	- initWithCenter:scale:camera:
(instancetype)	- initWithCenter:scale:rotation:
(instancetype)	- initWithCenter:scale:rotation:camera:
(instancetype)	- initWithLatitude:longitude:scale:
(instancetype)	- initWithLatitude:longitude:scale:camera:
(instancetype)	- initWithTargetExtent:
(instancetype)	- initWithTargetExtent:camera:
(instancetype)	- initWithTargetExtent:rotation:
(instancetype)	- initWithTargetExtent:rotation:camera:
(BOOL)	- isEqualToViewpoint:
(nullable id)	- toJSON:

Class Methods
(nullable id< AGSJSONSerializable >)	+ fromJSON:error:
(instancetype)	+ viewpointWithCenter:scale:
(instancetype)	+ viewpointWithCenter:scale:camera:
(instancetype)	+ viewpointWithCenter:scale:rotation:
(instancetype)	+ viewpointWithCenter:scale:rotation:camera:
(instancetype)	+ viewpointWithLatitude:longitude:scale:
(instancetype)	+ viewpointWithLatitude:longitude:scale:camera:
(instancetype)	+ viewpointWithTargetExtent:
(instancetype)	+ viewpointWithTargetExtent:camera:
(instancetype)	+ viewpointWithTargetExtent:rotation:
(instancetype)	+ viewpointWithTargetExtent:rotation:camera:

Properties
AGSCamera *	camera
double	rotation
AGSGeometry *	targetGeometry
double	targetScale
NSDictionary< NSString *, id > *	unknownJSON
NSDictionary< NSString *, id > *	unsupportedJSON
AGSViewpointType	viewpointType

Method Documentation

fromJSON:error:()

+ (nullable id<AGSJSONSerializable>) fromJSON: (id)  JSONObject error: (NSError **)  error

staticrequiredinherited

Initializes and returns an object from its JSON representation.

Parameters

JSONObject	NSDictionary or NSArray containing the JSON.
error	encountered during the operation, if any.

Since

100

initWithCenter:scale:()

- (instancetype) initWithCenter:		(AGSPoint *)	center
scale:		(double)	scale

Creates a viewpoint with center point and scale.

The spatial reference of the center point cannot be nil.

Parameters

center	The center of the visible area.
scale	The ratio between a distance on the map and the corresponding distance on the ground.

See also

AGSViewpoint

Since

100.0

initWithCenter:scale:camera:()

- (instancetype) initWithCenter:		(AGSPoint *)	center
scale:		(double)	scale
camera:		(AGSCamera *)	camera

Create a viewpoint with center point, scale, and AGSCamera.

The spatial reference of the center point cannot be nil. Center and scale will be used when working with a map, Camera will be used when working with a scene.

Parameters

center	The center of the visible area.
scale	The ratio between a distance on the map and the corresponding distance on the ground.
camera	An AGSCamera object that defines the observer for the scene.

See also

AGSViewpoint

Since

100.0

initWithCenter:scale:rotation:()

- (instancetype) initWithCenter:		(AGSPoint *)	center
scale:		(double)	scale
rotation:		(double)	rotation

Create a viewpoint with center point, scale, and rotation.

The spatial reference of the center point cannot be nil.

Parameters

center	The center of the visible area.
scale	The ratio between a distance on the map and the corresponding distance on the ground.
rotation	The rotation angle in degrees between 0 and 360 (in counter-clockwise direction).

See also

AGSViewpoint

Since

100.0

initWithCenter:scale:rotation:camera:()

- (instancetype) initWithCenter:		(AGSPoint *)	center
scale:		(double)	scale
rotation:		(double)	rotation
camera:		(AGSCamera *)	camera

Create a viewpoint with center point, scale, rotation, and AGSCamera.

The spatial reference of the center point cannot be nil. Center, scale, and rotation will be used when working with a map, Camera will be used when working with a scene.

Parameters

center	The center of the visible area.
scale	The ratio between a distance on the map and the corresponding distance on the ground.
rotation	The rotation angle in degrees between 0 and 360 (in counter-clockwise direction).
camera	An AGSCamera object that defines the observer for the scene.

See also

AGSViewpoint

Since

100.0

initWithLatitude:longitude:scale:()

- (instancetype) initWithLatitude:		(double)	latitude
longitude:		(double)	longitude
scale:		(double)	scale

Create a viewpoint with latitude, longitude, and scale.

The spatial reference for the defined point is WGS84.

Parameters

latitude	The latitude coordinate for the viewpoint. Negative values are south of the equator.
longitude	The longitude coordinate for the viewpoint. Negative values are west of the prime meridian.
scale	The ratio between a distance on the map and the corresponding distance on the ground.

See also

AGSViewpoint

Since

100.0

initWithLatitude:longitude:scale:camera:()

- (instancetype) initWithLatitude:		(double)	latitude
longitude:		(double)	longitude
scale:		(double)	scale
camera:		(AGSCamera *)	camera

Create a viewpoint with latitude, longitude, scale, and AGSCamera

The spatial reference for the defined point is WGS84. Latitude, longitude, and scale will be used when working with a map, Camera will be used when working with a scene.

Parameters

latitude	The latitude coordinate for the viewpoint. Negative values are south of the equator.
longitude	The longitude coordinate for the viewpoint. Negative values are west of the prime meridian.
scale	The ratio between a distance on the map and the corresponding distance on the ground.
camera	An AGSCamera object that defines the observer for the scene.

See also

AGSViewpoint

Since

100.0

initWithTargetExtent:()

- (instancetype) initWithTargetExtent:

(AGSEnvelope *)

targetExtent

Create a viewpoint with a bounding extent. The final extent may be different depending upon the difference in aspect ratio of the targetExtent and the map/scene.

The spatial reference of the target geometry cannot be nil.

Parameters

targetExtent

The geometry to use as the visible area.

See also

AGSViewpoint

Since

100.0

initWithTargetExtent:camera:()

- (instancetype) initWithTargetExtent:		(AGSEnvelope *)	targetExtent
camera:		(AGSCamera *)	camera

Create a viewpoint with a bounding extent and an AGSCamera.

The spatial reference of the target geometry cannot be nil. Target extent & rotation will be used when working with a map, Camera will be used when working with a scene.

Parameters

targetExtent	The geometry to use as the visible area.
camera	An AGSCamera object that defines the observer for the scene.

See also

AGSViewpoint

Since

100.4

initWithTargetExtent:rotation:()

- (instancetype) initWithTargetExtent:		(AGSEnvelope *)	targetExtent
rotation:		(double)	rotation

Create a viewpoint with a bounding extent and rotation.

The spatial reference of the target geometry cannot be nil.

Parameters

targetExtent	The geometry to use as the visible area.
rotation	The rotation angle in degrees between 0 and 360 (in counter-clockwise direction).

See also

AGSViewpoint

Since

100.0

initWithTargetExtent:rotation:camera:()

- (instancetype) initWithTargetExtent:		(AGSEnvelope *)	targetExtent
rotation:		(double)	rotation
camera:		(AGSCamera *)	camera

Create a viewpoint with a bounding extent, rotation, and AGSCamera.

The spatial reference of the target geometry cannot be nil. Target extent & rotation will be used when working with a map, Camera will be used when working with a scene.

Parameters

targetExtent	The geometry to use as the visible area.
rotation	The rotation angle in degrees between 0 and 360 (in counter-clockwise direction).
camera	An AGSCamera object that defines the observer for the scene.

See also

AGSViewpoint

Since

100.0

isEqualToViewpoint:()

- (BOOL) isEqualToViewpoint:

(AGSViewpoint *)

other

Compares whether this viewpoint is equal to another

Parameters

other

viewpoint to compare this one to

Returns

whether the two viewpoints are equal

Since

100

toJSON:()

- (nullable id) toJSON: (NSError **)  error

requiredinherited

Returns JSON representation for this object.

Parameters

error

encountered during the operation, if any.

Returns

NSDictionary or NSArray containing the JSON.

Since

100

Reimplemented in AGSPortalItem.

viewpointWithCenter:scale:()

+ (instancetype) viewpointWithCenter:		(AGSPoint *)	center
scale:		(double)	scale

Creates a viewpoint with center point and scale.

The spatial reference of the center point cannot be nil.

Parameters

center	The center of the visible area.
scale	The ratio between a distance on the map and the corresponding distance on the ground.

See also

AGSViewpoint

Since

100.0

viewpointWithCenter:scale:camera:()

+ (instancetype) viewpointWithCenter:		(AGSPoint *)	center
scale:		(double)	scale
camera:		(AGSCamera *)	camera

Create a viewpoint with center point, scale, and AGSCamera.

The spatial reference of the center point cannot be nil. Center and scale will be used when working with a map, Camera will be used when working with a scene.

Parameters

center	The center of the visible area.
scale	The ratio between a distance on the map and the corresponding distance on the ground.
camera	An AGSCamera object that defines the observer for the scene.

See also

AGSViewpoint

Since

100.0

viewpointWithCenter:scale:rotation:()

+ (instancetype) viewpointWithCenter:		(AGSPoint *)	center
scale:		(double)	scale
rotation:		(double)	rotation

Create a viewpoint with center point, scale, and rotation.

The spatial reference of the center point cannot be nil.

Parameters

center	The center of the visible area.
scale	The ratio between a distance on the map and the corresponding distance on the ground.
rotation	The rotation angle in degrees between 0 and 360 (in counter-clockwise direction).

See also

AGSViewpoint

Since

100.0

viewpointWithCenter:scale:rotation:camera:()

+ (instancetype) viewpointWithCenter:		(AGSPoint *)	center
scale:		(double)	scale
rotation:		(double)	rotation
camera:		(AGSCamera *)	camera

Create a viewpoint with center point, scale, rotation, and AGSCamera.

The spatial reference of the center point cannot be nil. Center, scale, and rotation will be used when working with a map, Camera will be used when working with a scene.

Parameters

center	The center of the visible area.
scale	The ratio between a distance on the map and the corresponding distance on the ground.
rotation	The rotation angle in degrees between 0 and 360.
camera	An AGSCamera object that defines the observer for the scene.

See also

AGSViewpoint

Since

100.0

viewpointWithLatitude:longitude:scale:()

+ (instancetype) viewpointWithLatitude:		(double)	latitude
longitude:		(double)	longitude
scale:		(double)	scale

Create a viewpoint with latitude, longitude, and scale.

The spatial reference for the defined point is WGS84.

Parameters

latitude	The latitude coordinate for the viewpoint. Negative values are south of the equator.
longitude	The longitude coordinate for the viewpoint. Negative values are west of the prime meridian.
scale	The ratio between a distance on the map and the corresponding distance on the ground.

See also

AGSViewpoint

Since

100.0

viewpointWithLatitude:longitude:scale:camera:()

+ (instancetype) viewpointWithLatitude:		(double)	latitude
longitude:		(double)	longitude
scale:		(double)	scale
camera:		(AGSCamera *)	camera

Create a viewpoint with latitude, longitude, scale, and AGSCamera

The spatial reference for the defined point is WGS84. Latitude, longitude, and scale will be used when working with a map, Camera will be used when working with a scene.

Parameters

latitude	The latitude coordinate for the viewpoint. Negative values are south of the equator.
longitude	The longitude coordinate for the viewpoint. Negative values are west of the prime meridian.
scale	The ratio between a distance on the map and the corresponding distance on the ground.
camera	An AGSCamera object that defines the observer for the scene.

See also

AGSViewpoint

Since

100.0

viewpointWithTargetExtent:()

+ (instancetype) viewpointWithTargetExtent:

(AGSEnvelope *)

targetExtent

Create a viewpoint with a bounding extent.

The spatial reference of the target geometry cannot be nil. The final extent may be different depending upon the difference in aspect ratio of the targetExtent and the map/scene.

Parameters

targetExtent

The geometry to use as the visible area.

See also

AGSViewpoint

Since

100.0

viewpointWithTargetExtent:camera:()

+ (instancetype) viewpointWithTargetExtent:		(AGSEnvelope *)	targetExtent
camera:		(AGSCamera *)	camera

Create a viewpoint with a bounding extent and an AGSCamera.

The spatial reference of the target geometry cannot be nil. Target extent will be used when working with a map, Camera will be used when working with a scene.

Parameters

targetExtent	The geometry to use as the visible area.
camera	An AGSCamera object that defines the observer for the scene.

See also

AGSViewpoint

Since

100.4

viewpointWithTargetExtent:rotation:()

+ (instancetype) viewpointWithTargetExtent:		(AGSEnvelope *)	targetExtent
rotation:		(double)	rotation

Initialize the viewpoint with an extent and rotation

Parameters

targetExtent	at which the map/scene should be displayed. The final extent may be different depending upon the difference in aspect ratio of the targetExtent and the map/scene.
rotation	angle by which the map/scene should be rotated (in counter-clockwise direction)

Returns

Initialized viewpoint

Since

100

viewpointWithTargetExtent:rotation:camera:()

+ (instancetype) viewpointWithTargetExtent:		(AGSEnvelope *)	targetExtent
rotation:		(double)	rotation
camera:		(AGSCamera *)	camera

Create a viewpoint with a bounding extent, rotation, and AGSCamera.

The spatial reference of the target geometry cannot be nil. Target extent & rotation will be used when working with a map, Camera will be used when working with a scene.

Parameters

targetExtent	The geometry to use as the visible area.
rotation	The rotation angle in degrees between 0 and 360 (in counter-clockwise direction).
camera	An AGSCamera object that defines the observer for the scene.

See also

AGSViewpoint

Since

100.0

Property Documentation

camera

- (AGSCamera*) camera

readnonatomicstrong

The viewpoint's AGSCamera.

See also

AGSViewpoint, AGSCamera

Since

100.4

rotation

- (double) rotation

readnonatomicassign

The viewpoint rotation angle in degrees between 0 and 360 (in counter-clockwise direction).

See also

AGSViewpoint

Since

100.0

targetGeometry

- (AGSGeometry*) targetGeometry

readnonatomicstrong

The geometry represented by this viewpoint. If viewpointType is AGSViewpointTypeCenterAndScale, this contains a point geometry If viewpointType is AGSViewpointTypeBoundingGeometry, this contains an envelope geometry

Since

100

targetScale

- (double) targetScale

readnonatomicassign

The map scale represented by this viewpoint. Only applicable if viewpointType is AGSViewpointTypeCenterAndScale

Since

100

unknownJSON

- (NSDictionary<NSString*,id>*) unknownJSON

readrequirednonatomiccopyinherited

A dictionary of values that was in the source JSON but was unparsed by API.

Returns

NSDictionary containing the unknown JSON.

Since

100

unsupportedJSON

- (NSDictionary<NSString*,id>*) unsupportedJSON

readnonatomiccopyinherited

A dictionary of values that are supported by the REST API, but not exposed through the SDK API.

Returns

NSDictionary containing the unsupported JSON.

Since

100

viewpointType

- (AGSViewpointType) viewpointType

readnonatomicassign

The type of information contained in this viewpoint

Since

100
