Description

A utility network.

This is the central class for utility network schema information and tracing. AGSUtilityNetwork follows the AGSLoadable pattern. When it loads, it is populated with the utility network schema. This class provides methods to create AGSUtilityElement objects for the AGSUtilityNetwork.

Since: 100.6

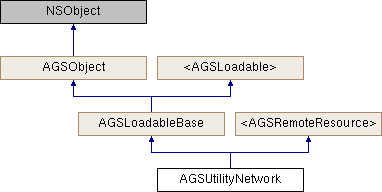

Inheritance diagram for AGSUtilityNetwork:

Instance Methods
(id< AGSCancelable >)	- associationsWithElement:completion:

(id< AGSCancelable >)	- associationsWithElement:type:completion:

(id< AGSCancelable >)	- associationsWithExtent:completion:

(id< AGSCancelable >)	- associationsWithExtent:type:completion:

(void)	- cancelLoad

(nullable AGSUtilityElement *)	- createElementWithAssetType:globalID:

(nullable AGSUtilityElement *)	- createElementWithAssetType:globalID:terminal:

(nullable AGSUtilityElement *)	- createElementWithFeature:

(nullable AGSUtilityElement *)	- createElementWithFeature:terminal:

(id< AGSCancelable >)	- featuresForElements:completion:

(instancetype)	- initWithURL:

(instancetype)	- initWithURL:map:

(void)	- loadWithCompletion:

(void)	- retryLoadWithCompletion:

(id< AGSCancelable >)	- traceWithParameters:completion:

Class Methods
(instancetype)	+ utilityNetworkWithURL:

(instancetype)	+ utilityNetworkWithURL:map:

Properties
AGSCredential *	credential

AGSUtilityNetworkDefinition *	definition

NSError *	loadError

AGSLoadStatus	loadStatus

NSString *	name

AGSRequestConfiguration *	requestConfiguration

NSURL *	URL

Method Documentation

§ associationsWithElement:completion:()

- (id<AGSCancelable>) associationsWithElement:	(AGSUtilityElement *)	element
completion:	(void(^)(NSArray< AGSUtilityAssociation * > __nullable result, NSError __nullable error))	completion

Returns a list of all AGSUtilityAssociation objects present in the geodatabase for a given AGSUtilityElement. The result is a list of all associations – connectivity associations, containment associations, structural attachment associations – that include the given AGSUtilityElement object. The method does not return a complete picture of connectivity; features that are connected by geometric coincidence are not returned. Note that the list returned can contain associations that have not yet been validated and are therefore not yet included in the topological index.

Parameters

element	The `AGSUtilityElement` whose associations are to be returned.
completion	Block that is invoked when the operation finishes. The `result` parameter is populated if the operation completed successfully, otherwise the `error` parameter is populated.

Returns: An operation which can be canceled.

Since: 100.7

§ associationsWithElement:type:completion:()

- (id<AGSCancelable>) associationsWithElement:	(AGSUtilityElement *)	element
type:	(AGSUtilityAssociationType)	type
completion:	(void(^)(NSArray< AGSUtilityAssociation * > __nullable result, NSError __nullable error))	completion

Returns a list of all AGSUtilityAssociation objects of type AGSUtilityAssociationType present in the geodatabase for a given AGSUtilityElement. The method does not return a complete picture of connectivity; features that are connected by geometric coincidence are not returned. Note that the list returned can contain associations that have not yet been validated and are therefore not yet included in the topological index.

Parameters

element	The `AGSUtilityElement` whose associations are to be returned.
type	The `AGSUtilityAssociationType` of associations to return.
completion	Block that is invoked when the operation finishes. The `result` parameter is populated if the operation completed successfully, otherwise the `error` parameter is populated.

Returns: An operation which can be canceled.

Since: 100.7

§ associationsWithExtent:completion:()

- (id<AGSCancelable>) associationsWithExtent:	(AGSEnvelope *)	extent
completion:	(void(^)(NSArray< AGSUtilityAssociation * > __nullable result, NSError __nullable error))	completion

Returns a list of all AGSUtilityAssociation objects (with their geometry) present in the geodatabase for a given AGSEnvelope. The result is a list of connectivity and structural attachment associations. Containment associations are not returned because no geometric relationship is defined between a container and its contents. The method does not return a complete picture of connectivity; features that are connected by geometric coincidence are not returned. Note that the list returned can contain associations that have not yet been validated and are therefore not yet included in the topological index.

Parameters

extent	The `AGSEnvelope` that defines the area for which associations to return.
completion	Block that is invoked when the operation finishes. The `result` parameter is populated if the operation completed successfully, otherwise the `error` parameter is populated.

Returns: An operation which can be canceled.

Since: 100.8

§ associationsWithExtent:type:completion:()

- (id<AGSCancelable>) associationsWithExtent:	(AGSEnvelope *)	extent
type:	(AGSUtilityAssociationType)	type
completion:	(void(^)(NSArray< AGSUtilityAssociation * > __nullable result, NSError __nullable error))	completion

Returns a list of all AGSUtilityAssociation objects (with their geometry) of type AGSUtilityAssociationType present in the geodatabase for a given AGSEnvelope. Containment associations are not returned because no geometric relationship is defined between a container and its contents; consider using associationsWithElement:type:completion: instead. The method does not return a complete picture of connectivity; features that are connected by geometric coincidence are not returned. Note that the list returned can contain associations that have not yet been validated and are therefore not yet included in the topological index.

Parameters

extent	The `AGSEnvelope` that defines the area for which associations to return.
type	The `AGSUtilityAssociationType` of associations to return.
completion	Block that is invoked when the operation finishes. The `result` parameter is populated if the operation completed successfully, otherwise the `error` parameter is populated.

Returns: An operation which can be canceled.

Since: 100.8

§ cancelLoad()

- (void) cancelLoad

requiredinherited

Cancels loading if it is in progress, otherwise it does nothing. This should be called carefully because other objects could be waiting for loadWithCompletion: or retryLoadWithCompletion: to complete and this will call them all back with the error of NSUserCancelledError

Since: 100

§ createElementWithAssetType:globalID:()

- (nullable AGSUtilityElement *) createElementWithAssetType:	(AGSUtilityAssetType *)	assetType
globalID:	(NSUUID *)	globalID

Creates an AGSUtilityElement from an AGSUtilityAssetType and a GlobalID. If the AGSUtilityAssetType supports an AGSUtilityTerminalConfiguration, a default AGSUtilityTerminal will be assigned.

Parameters

assetType	The `AGSUtilityAssetType` of the feature from which this feature element is created
globalID	The GlobalID of the feature from which this feature element is created

Returns: A new AGSUtilityElement object

Since: 100.7

§ createElementWithAssetType:globalID:terminal:()

- (nullable AGSUtilityElement *) createElementWithAssetType:	(AGSUtilityAssetType *)	assetType
globalID:	(NSUUID *)	globalID
terminal:	(nullable AGSUtilityTerminal *)	terminal

Creates an AGSUtilityElement from an AGSUtilityAssetType, a GlobalID, and an optional AGSUtilityTerminal. If the optional AGSUtilityTerminal is not supplied, and the AGSUtilityAssetType supports an AGSUtilityTerminalConfiguration, a default AGSUtilityTerminal will be assigned.

Parameters

assetType	The `AGSUtilityAssetType` of the feature from which this feature element is created
globalID	The GlobalID of the feature from which this feature element is created
terminal	The `AGSUtilityTerminal`

Returns: A new AGSUtilityElement object

Since: 100.6

§ createElementWithFeature:()

- (nullable AGSUtilityElement *) createElementWithFeature: (AGSArcGISFeature *) feature

Creates an AGSUtilityElement from a feature If the feature's AGSUtilityAssetType supports an AGSUtilityTerminalConfiguration, a default AGSUtilityTerminal will be assigned.

Parameters

feature The AGSArcGISFeature from which the feature element is created

Returns: A new AGSUtilityElement object

Since: 100.7

§ createElementWithFeature:terminal:()

- (nullable AGSUtilityElement *) createElementWithFeature:	(AGSArcGISFeature *)	feature
terminal:	(nullable AGSUtilityTerminal *)	terminal

Creates an AGSUtilityElement from a feature and an optional AGSUtilityTerminal. If the optional AGSUtilityTerminal is not supplied, and the feature's AGSUtilityAssetType supports an AGSUtilityTerminalConfiguration, a default AGSUtilityTerminal will be assigned.

Parameters

feature	The `AGSArcGISFeature` from which the feature element is created
terminal	The `AGSUtilityTerminal`

Returns: A new AGSUtilityElement object

Since: 100.6

§ featuresForElements:completion:()

- (id<AGSCancelable>) featuresForElements:	(NSArray< AGSUtilityElement * > *)	elements
completion:	(void(^)(NSArray< AGSArcGISFeature * > __nullable result, NSError __nullable error))	completion

Gets an array of loaded AGSArcGISFeature objects that each correspond to one of an array of AGSUtilityElement objects

Parameters

elements	The array of utility elements used to find corresponding features
completion	Block that is invoked when the operation finishes. The `result` parameter is populated if the operation completed successfully, otherwise the `error` parameter is populated.

Returns: An operation which can be canceled.

Since: 100.6

§ initWithURL:()

- (instancetype) initWithURL: (NSURL *) URL

Creates an AGSUtilityNetwork using the URL to the feature service

Parameters

URL	The URL to the feature service

Since: 100.6

§ initWithURL:map:()

- (instancetype) initWithURL:	(NSURL *)	URL
map:	(AGSMap *)	map

Creates a utility network with the URL to the feature service and a map Creates a utility network associated with a particular service, using the same AGSArcGISFeatureTable objects in use by AGSFeatureLayer objects within the map. This lets any AGSUtilityElement or AGSArcGISFeature objects the AGSUtilityNetwork creates or uses be associated with those existing tables and layers. Usually used when instantiating an AGSUtilityNetwork object from a web map.

Parameters

URL	The URL to the Feature Service
map	A Map that provides FeatureTables to be reused by the utility network

Since: 100.6

§ loadWithCompletion:()

- (void) loadWithCompletion: (nullable void(^)(NSError *__nullable error)) completion

requiredinherited

Loads data for the object asynchronously. The completion block is invoked upon completion.

You can call this method any number of times, however only one attempt is made to load the data. If it is already loading, it will just continue to load (i.e. not force a reload). If it has already loaded successfully, the completion block will be invoked right away. If it has already failed to load, the completion block will be invoked right away with error previously encountered. This method supports multiple callers and will call them all back on completion. However, each caller's completion block will be invoked once and only once.

Parameters

completion block that is invoked when object loads successfully or fails to load. An error is passed to the block if the object fails to load.

Note: The completion block is always invoked on the main thread.

Since: 100

See also: - cancelLoad to cancel loading; - retryLoadWithCompletion: to force reload

§ retryLoadWithCompletion:()

- (void) retryLoadWithCompletion: (nullable void(^)(NSError *__nullable error)) completion

requiredinherited

Tries to reload when an object has failed to load. This method should be called judiciously. It should be called when:

you didn't have network connectivity earlier when it failed and you want to retry now that you have connectivity
the server was down earlier when it failed and you want to retry
the request is taking too long and you want to cancel it and retry, in which case you will first call cancelLoad and then this method

If the data hasn't started loading, it will start loading. If it is already loading, it will just continue to load. If it has already loaded successfully, calls back right away. If it has already failed to load, tries again. This method supports multiple callers and will call them all back on completion. However, each caller's completion block will be invoked once and only once.

Parameters

completion block that is invoked when object loads successfully or fails to load. An error is passed to the block if the object fails to load.

Note: The completion block is always invoked on the main thread.

Since: 100

§ utilityNetworkWithURL:()

+ (instancetype) utilityNetworkWithURL: (NSURL *) URL

Creates an AGSUtilityNetwork using the URL to the feature service

Parameters

URL	The URL to the feature service

Since: 100.6

§ utilityNetworkWithURL:map:()

+ (instancetype) utilityNetworkWithURL:	(NSURL *)	URL
map:	(AGSMap *)	map

Creates a utility network with the URL to the feature service and a map Creates a utility network associated with a particular service, using the same AGSArcGISFeatureTable objects in use by AGSFeatureLayer objects within the map. This lets any AGSUtilityElement or AGSArcGISFeature objects the AGSUtilityNetwork creates or uses be associated with those existing tables and layers. Usually used when instantiating an AGSUtilityNetwork object from a web map.

Parameters

URL	The URL to the Feature Service
map	A Map that provides FeatureTables to be reused by the utility network

Since: 100.6

Property Documentation

§ credential

- (AGSCredential*) credential

readwritenonatomicstronginherited

Security credentials to access the remote resource. Only applicable if the resource is secured.

Since: 100

§ definition

- (AGSUtilityNetworkDefinition*) definition

readnonatomicstrong

The definition of the AGSUtilityNetwork

See also: AGSUtilityNetworkDefinition

Since: 100.6

§ loadError

- (NSError*) loadError

readnonatomicstronginherited

The error that was encountered during the most recent load operation. Will be nil if the operation succeeded.

Since: 100

§ loadStatus

- (AGSLoadStatus) loadStatus

readrequirednonatomicassigninherited

Status of the load operation.

Since: 100

§ name

- (NSString*) name

readnonatomiccopy

The name of the AGSUtilityNetwork.

Since: 100.8

§ requestConfiguration

- (AGSRequestConfiguration*) requestConfiguration

readwritenonatomicstronginherited

The AGSRequestConfiguration object which defines the behavior and policies to use when accessing the remote resource. The default will be nil. If it is nil the [AGSRequestConfiguration globalConfiguration] will be used.

Since: 100

§ URL

- (NSURL*) URL

readrequirednonatomicstronginherited

The URL of the remote resource.

Since: 100
