Description

A container for a collection of AGSServiceFeatureTable connected to a feature service.

An AGSServiceGeodatabase connects to a feature service as a whole, grouping together AGSServiceFeatureTable instances for related records queries, connecting to a version in a branch-versioned service, and managing edits for all tables.

Since: 100.9

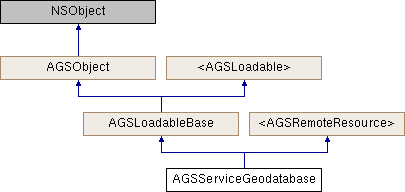

Inheritance diagram for AGSServiceGeodatabase:

Instance Methods
(id< AGSCancelable >)	- applyEditsWithCompletion:

(void)	- cancelLoad

(id< AGSCancelable >)	- createVersionWithParameters:completion:

(id< AGSCancelable >)	- fetchVersionsWithCompletion:

(BOOL)	- hasLocalEdits

(instancetype)	- initWithURL:

(instancetype)	- initWithURL:versionName:

(void)	- loadWithCompletion:

(void)	- retryLoadWithCompletion:

(id< AGSCancelable >)	- switchVersionWithName:completion:

(nullable AGSServiceFeatureTable *)	- tableWithLayerID:

(id< AGSCancelable >)	- undoLocalEditsWithCompletion:

Class Methods
(instancetype)	+ serviceGeodatabaseWithURL:

(instancetype)	+ serviceGeodatabaseWithURL:versionName:

Properties
NSArray< AGSServiceFeatureTable * > *	connectedTables

AGSCredential *	credential

NSString *	defaultVersionName

NSError *	loadError

AGSLoadStatus	loadStatus

AGSRequestConfiguration *	requestConfiguration

AGSArcGISFeatureServiceInfo *	serviceInfo

BOOL	supportsBranchVersioning

NSURL *	URL

NSString *	versionName

Method Documentation

§ applyEditsWithCompletion:()

- (id<AGSCancelable>) applyEditsWithCompletion: (void(^)(NSArray< AGSFeatureTableEditResult * > *__nullable result, NSError *__nullable error)) completion

Applies all local edits in all tables to the service.

Edits in all tables are applied to the feature service in a single call, which is more efficient than doing so one AGSServiceFeatureTable at a time.

Parameters

completion Block that is invoked when the operation finishes. The result parameter is populated if the operation completed successfully, otherwise the error parameter is populated.

Returns: An operation which can be canceled.

Since: 100.9

§ cancelLoad()

- (void) cancelLoad

requiredinherited

Cancels loading if it is in progress, otherwise it does nothing. This should be called carefully because other objects could be waiting for loadWithCompletion: or retryLoadWithCompletion: to complete and this will call them all back with the error of NSUserCancelledError

Since: 100

§ createVersionWithParameters:completion:()

- (id<AGSCancelable>) createVersionWithParameters:	(AGSServiceVersionParameters *)	parameters
completion:	(void(^)(AGSServiceVersionInfo __nullable result, NSError __nullable error))	completion

Creates a new version in the service based on the default version

Branch versioning requires that the default version always be the ancestor of all other versions.

If the service isn't branch versioned, this will complete with AGSErrorCodeMappingBranchVersioningNotSupportedByService If the version parameters do not include a name, this will complete with an error.

Parameters

parameters	The properties of the new version
completion	Block that is invoked when the operation finishes. The `result` parameter is populated if the operation completed successfully, otherwise the `error` parameter is populated.

Returns: An operation which can be canceled.

Since: 100.9

§ fetchVersionsWithCompletion:()

- (id<AGSCancelable>) fetchVersionsWithCompletion: (void(^)(NSArray< AGSServiceVersionInfo * > *__nullable result, NSError *__nullable error)) completion

Gets a list of all versions on the service

If the service isn't branch versioned, this will complete with AGSErrorCodeMappingBranchVersioningNotSupportedByService

Parameters

completion Block that is invoked when the operation finishes. The result parameter is populated if the operation completed successfully, otherwise the error parameter is populated.

Returns: An operation which can be canceled.

Since: 100.9

§ hasLocalEdits()

- (BOOL) hasLocalEdits

Determines if any of the tables in the AGSServiceGeodatabase have unapplied edits.

Returns: Whether any of the tables have unapplied edits.

Since: 100.9

§ initWithURL:()

- (instancetype) initWithURL: (NSURL *) URL

Creates a new AGSServiceGeodatabase connected to the default version in a feature service

If the service is branch versioned, the AGSServiceGeodatabase will connect to the default version

Parameters

URL	The URL of the service to connect to

Since: 100.9

§ initWithURL:versionName:()

- (instancetype) initWithURL:	(NSURL *)	URL
versionName:	(NSString *)	versionName

Creates a new AGSServiceGeodatabase connected to a specific version in a feature service.

If a version with the name does not exist, or the service is not branch versioned, the AGSServiceGeodatabase will fail to load.

Parameters

URL	The URL of the service to connect to.
versionName	The existing version to connect to when the `AGSServiceGeodatabase` loads.

Since: 100.9

§ loadWithCompletion:()

- (void) loadWithCompletion: (nullable void(^)(NSError *__nullable error)) completion

requiredinherited

Loads data for the object asynchronously. The completion block is invoked upon completion.

You can call this method any number of times, however only one attempt is made to load the data. If it is already loading, it will just continue to load (i.e. not force a reload). If it has already loaded successfully, the completion block will be invoked right away. If it has already failed to load, the completion block will be invoked right away with error previously encountered. This method supports multiple callers and will call them all back on completion. However, each caller's completion block will be invoked once and only once.

Parameters

completion block that is invoked when object loads successfully or fails to load. An error is passed to the block if the object fails to load.

Note: The completion block is always invoked on the main thread.

Since: 100

See also: - cancelLoad to cancel loading; - retryLoadWithCompletion: to force reload

§ retryLoadWithCompletion:()

- (void) retryLoadWithCompletion: (nullable void(^)(NSError *__nullable error)) completion

requiredinherited

Tries to reload when an object has failed to load. This method should be called judiciously. It should be called when:

you didn't have network connectivity earlier when it failed and you want to retry now that you have connectivity
the server was down earlier when it failed and you want to retry
the request is taking too long and you want to cancel it and retry, in which case you will first call cancelLoad and then this method

If the data hasn't started loading, it will start loading. If it is already loading, it will just continue to load. If it has already loaded successfully, calls back right away. If it has already failed to load, tries again. This method supports multiple callers and will call them all back on completion. However, each caller's completion block will be invoked once and only once.

Parameters

completion block that is invoked when object loads successfully or fails to load. An error is passed to the block if the object fails to load.

Note: The completion block is always invoked on the main thread.

Since: 100

§ serviceGeodatabaseWithURL:()

+ (instancetype) serviceGeodatabaseWithURL: (NSURL *) URL

Creates a new AGSServiceGeodatabase connected to the default version in a feature service

If the service is branch versioned, the AGSServiceGeodatabase will connect to the default version

Parameters

URL	The URL of the service to connect to

Since: 100.9

§ serviceGeodatabaseWithURL:versionName:()

+ (instancetype) serviceGeodatabaseWithURL:	(NSURL *)	URL
versionName:	(NSString *)	versionName

Creates a new AGSServiceGeodatabase connected to a specific version in a feature service.

If a version with the name does not exist, or the service is not branch versioned, the AGSServiceGeodatabase will fail to load.

Parameters

URL	The URL of the service to connect to.
versionName	The existing version to connect to when the `AGSServiceGeodatabase` loads.

Since: 100.9

§ switchVersionWithName:completion:()

- (id<AGSCancelable>) switchVersionWithName:	(NSString *)	versionName
completion:	(void(^)(NSError *__nullable error))	completion

Switches all connected feature tables to the new version.

An error is returned if:

The service isn't branch versioned
No version exists with the supplied name
Any of the AGSServiceGeodatabase::connectedTables have unapplied edits

Check the result of hasLocalEdits: before attempting to switch versions, to make sure all changes are saved to the service or discarded from the local cache. Use the applyEditsWithCompletion: or undoLocalEditsWithCompletion: methods as appropriate to save or discard changes before switching versions.

Parameters

versionName	The name of the version to connect to.
completion	The `error` parameter is populated on failure.

Returns: An operation which can be canceled.

Since: 100.9

§ tableWithLayerID:()

- (nullable AGSServiceFeatureTable *) tableWithLayerID: (NSInteger) layerID

Returns a service feature table object from the ID of a layer or table in the service

If a table instance for the layer already exists in AGSServiceGeodatabase::connectedTables, the existing object will be returned. Otherwise, a new AGSServiceFeatureTable will be created.

Parameters

layerID The layer id for which to create the table

Returns: A table instance for working with the table or layer in the feature service. If no table or layer exists in the service with the given ID, nil is returned.

Since: 100.9

§ undoLocalEditsWithCompletion:()

- (id<AGSCancelable>) undoLocalEditsWithCompletion: (void(^)(NSError *__nullable error)) completion

Undoes all of the local edits in all the tables.

Parameters

completion The error parameter is populated on failure.

Returns: An operation which can be canceled.

Since: 100.9

Property Documentation

§ connectedTables

- (NSArray<AGSServiceFeatureTable *>*) connectedTables

readnonatomiccopy

An array of feature tables managed by the AGSServiceGeodatabase

Since: 100.9

§ credential

- (AGSCredential*) credential

readwritenonatomicstronginherited

Security credentials to access the remote resource. Only applicable if the resource is secured.

Since: 100

§ defaultVersionName

- (NSString*) defaultVersionName

readnonatomiccopy

The name of the default version

Since: 100.9

§ loadError

- (NSError*) loadError

readnonatomicstronginherited

The error that was encountered during the most recent load operation. Will be nil if the operation succeeded.

Since: 100

§ loadStatus

- (AGSLoadStatus) loadStatus

readrequirednonatomicassigninherited

Status of the load operation.

Since: 100

§ requestConfiguration

- (AGSRequestConfiguration*) requestConfiguration

readwritenonatomicstronginherited

The AGSRequestConfiguration object which defines the behavior and policies to use when accessing the remote resource. The default will be nil. If it is nil the [AGSRequestConfiguration globalConfiguration] will be used.

Since: 100

§ serviceInfo

- (AGSArcGISFeatureServiceInfo*) serviceInfo

readnonatomicstrong

The metadata of the service this object is connected to

Since: 100.9

§ supportsBranchVersioning

- (BOOL) supportsBranchVersioning

readnonatomicassign

Whether the service supports branch versioning

Since: 100.9

§ URL

- (NSURL*) URL

readrequirednonatomicstronginherited

The URL of the remote resource.

Since: 100

§ versionName

- (NSString*) versionName

readnonatomiccopy

The name of the version the AGSServiceGeodatabase is currently connected to

To change the version this AGSServiceGeodatabase is connected to, use the switchVersionWithName:completion: method.

Since: 100.9
