Description

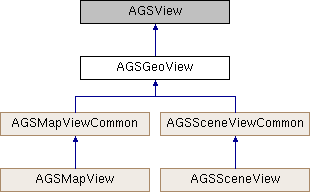

A base class for all views that can display geographic content on screen.
A base class for all views that can display geographic content on screen. Subclasses can display the content in either 2D (AGSMapView) or 3D (AGSSceneView). In an MVC architecture, this class and its subclasses represent the View tier. The Model tier is represented by the geographic content which could be a map (AGSMap) or scene (AGSScene).
- Since
- 100
Properties | |
| NSString * | attributionText |
| BOOL | attributionTextVisible |
| NSLayoutYAxisAnchor * | attributionTopAnchor |
| AGSCallout * | callout |
| AGSDrawStatus | drawStatus |
| NSMutableArray< AGSGraphicsOverlay * > * | graphicsOverlays |
| void(^ | layerViewStateChangedHandler )(AGSLayer *layer, AGSLayerViewState *layerViewState) |
| BOOL | navigating |
| BOOL | releaseHardwareResourcesWhenBackgrounded |
| AGSSelectionProperties * | selectionProperties |
| AGSSpatialReference * | spatialReference |
| AGSTimeExtent * | timeExtent |
| IBOutlet id< AGSGeoViewTouchDelegate > | touchDelegate |
| void(^ | viewpointChangedHandler )(void) |
| BOOL | wrapAroundEnabled |
Method Documentation
§ currentViewpointWithType:()
| - (nullable AGSViewpoint*) currentViewpointWithType: | (AGSViewpointType) | viewpointType |
Gets the current viewpoint being displayed. For an AGSMapView, this takes into account the attribution bar and any contentInset that has been specified to return only the unobscured portion of the map.
- Parameters
-
viewpointType specifying how the viewpoint should be represented
- Returns
- viewpoint
- Since
- 100
§ exportImageWithCompletion:()
| - (id<AGSCancelable>) exportImageWithCompletion: | (void(^)(AGSImage *__nullable image, NSError *__nullable error)) | completion |
Provides an image depicting the view's current display.
- Parameters
-
completion block that is invoked when the operation completes
- Returns
- operation which can be canceled
- Since
- 100
§ identifyGraphicsOverlay:screenPoint:tolerance:returnPopupsOnly:completion:()
| - (id<AGSCancelable>) identifyGraphicsOverlay: | (AGSGraphicsOverlay *) | graphicsOverlay | |
| screenPoint: | (CGPoint) | screenPoint | |
| tolerance: | (double) | tolerance | |
| returnPopupsOnly: | (BOOL) | returnPopupsOnly | |
| completion: | (void(^)(AGSIdentifyGraphicsOverlayResult *identifyResult)) | completion | |
Identify (hit-test) the top-most graphic that appears at the specified screen coordinates in the provided graphics overlay.
- Parameters
-
graphicsOverlay in which to identify graphics screenPoint at which to identify graphics tolerance radius in points specifying how precise the identify operation should be. A value of 0 means that it should be extremely precise - only those graphics appearing at the exact coordinates should be returned. A value of 22 (a good default for touch displays which covers an average finger tap) means graphics appearing within a 44pt buffer can also be returned. Max value permitted is 100. returnPopupsOnly specifies what the identify results should contain. If set to YES, only overlays with popups will be retured. If set to NO, all overlays (with or without popups) will be retured. completion block that is invoked when the operation is complete with the result.
- Returns
- operation which can be canceled
- Since
- 100
§ identifyGraphicsOverlay:screenPoint:tolerance:returnPopupsOnly:maximumResults:completion:()
| - (id<AGSCancelable>) identifyGraphicsOverlay: | (AGSGraphicsOverlay *) | graphicsOverlay | |
| screenPoint: | (CGPoint) | screenPoint | |
| tolerance: | (double) | tolerance | |
| returnPopupsOnly: | (BOOL) | returnPopupsOnly | |
| maximumResults: | (NSInteger) | maximumResults | |
| completion: | (void(^)(AGSIdentifyGraphicsOverlayResult *identifyResult)) | completion | |
Identify (hit-test) which graphics appear at the specified screen coordinates in the provided graphics overlay.
- Parameters
-
graphicsOverlay in which to identify graphics screenPoint at which to identify graphics tolerance radius in points specifying how precise the identify operation should be. A value of 0 means that it should be extremely precise - only those graphics appearing at the exact coordinates should be returned. A value of 22 (a good default for touch displays which covers an average finger tap) means graphics appearing within a 44 pt buffer can also be returned. Max value permitted is 100. returnPopupsOnly specifies what the identify results should contain. If set to YES, only overlays with popups will be retured. If set to NO, all overlays (with or without popups) will be retured. maximumResults that should be returned as the result completion block that is invoked when the operation is complete with the result.
- Returns
- operation which can be canceled
- Since
- 100
§ identifyGraphicsOverlaysAtScreenPoint:tolerance:returnPopupsOnly:completion:()
| - (id<AGSCancelable>) identifyGraphicsOverlaysAtScreenPoint: | (CGPoint) | screenPoint | |
| tolerance: | (double) | tolerance | |
| returnPopupsOnly: | (BOOL) | returnPopupsOnly | |
| completion: | (void(^)(NSArray< AGSIdentifyGraphicsOverlayResult * > *__nullable identifyResults, NSError *__nullable error)) | completion | |
Identify (hit-test) the top-most graphic that appears at the specified screen coordinates in all the graphics overlays.
- Parameters
-
screenPoint at which to identify graphics tolerance radius in points specifying how precise the identify operation should be. A value of 0 means that it should be extremely precise - only those graphics at that exact coordinates should be returned. A value of 22 (a good default for touch displays which covers an average finger tap) means graphics within a 44pt buffer can also be returned. Max value permitted is 100. returnPopupsOnly specifies what the identify results should contain. If set to YES, only overlays with popups will be retured. If set to NO, all overlays (with or without popups) will be retured. completion block that is invoked when the operation is complete with either the results or an error.
- Returns
- operation which can be canceled
- Since
- 100
§ identifyGraphicsOverlaysAtScreenPoint:tolerance:returnPopupsOnly:maximumResultsPerOverlay:completion:()
| - (id<AGSCancelable>) identifyGraphicsOverlaysAtScreenPoint: | (CGPoint) | screenPoint | |
| tolerance: | (double) | tolerance | |
| returnPopupsOnly: | (BOOL) | returnPopupsOnly | |
| maximumResultsPerOverlay: | (NSInteger) | maximumResultsPerOverlay | |
| completion: | (void(^)(NSArray< AGSIdentifyGraphicsOverlayResult * > *__nullable identifyResults, NSError *__nullable error)) | completion | |
Identify (hit-test) which graphics appear at the specified screen coordinates in all the graphics overlays.
- Parameters
-
screenPoint at which to identify graphics tolerance radius in points specifying how precise the identify operation should be. A value of 0 means that it should be extremely precise - only those graphics at that exact coordinates should be returned. A value of 22 (a good default for touch displays which covers an average finger tap) means graphics within a 44pt buffer can also be returned. Max value permitted is 100. returnPopupsOnly specifies what the identify results should contain. If set to YES, only overlays with popups will be retured. If set to NO, all overlays (with or without popups) will be retured. maximumResultsPerOverlay that should be returned for each overlay in the result completion block that is invoked when the operation is complete with either the results or an error.
- Returns
- operation which can be canceled
- Since
- 100
§ identifyLayer:screenPoint:tolerance:returnPopupsOnly:completion:()
| - (id<AGSCancelable>) identifyLayer: | (AGSLayer *) | layer | |
| screenPoint: | (CGPoint) | screenPoint | |
| tolerance: | (double) | tolerance | |
| returnPopupsOnly: | (BOOL) | returnPopupsOnly | |
| completion: | (void(^)(AGSIdentifyLayerResult *identifyResult)) | completion | |
Identify (hit-test and/or spatially query) the top-most feature that appears at the specified screen coordinates in the provided layer.
- Parameters
-
layer in which to identify features screenPoint at which to identify features tolerance radius in points specifying how precise the identify operation should be. A value of 0 means that it should be extremely precise - only those features appearing at the exact coordinates should be returned. A value of 22 (a good default for touch displays which covers an average finger tap) means features appearing within a 44pt buffer can also be returned. Max value permitted is 100. returnPopupsOnly specifies what the identify results should contain. If set to YES, only layers with popups will be retured. If the layer does not have popups an error will be returned. If set to NO, all layers (with or without popups) will be retured. completion block that is invoked when the operation is complete with the result.
- Returns
- operation which can be canceled
- Since
- 100
§ identifyLayer:screenPoint:tolerance:returnPopupsOnly:maximumResults:completion:()
| - (id<AGSCancelable>) identifyLayer: | (AGSLayer *) | layer | |
| screenPoint: | (CGPoint) | screenPoint | |
| tolerance: | (double) | tolerance | |
| returnPopupsOnly: | (BOOL) | returnPopupsOnly | |
| maximumResults: | (NSInteger) | maximumResults | |
| completion: | (void(^)(AGSIdentifyLayerResult *identifyResult)) | completion | |
Identify (hit-test and/or spatially query) all features that appear at the specified screen coordinates in the provided layer.
- Parameters
-
layer in which to identify features screenPoint at which to identify features tolerance radius in points specifying how precise the identify operation should be. A value of 0 means that it should be extremely precise - only those features appearing at the exact coordinates should be returned. A value of 22 (a good default for touch displays which covers an average finger tap) means features appearing within a 44pt buffer can also be returned. Max value permitted is 100. returnPopupsOnly specifies what the identify results should contain. If set to YES, only layers with popups will be retured. If the layer does not have popups an error will be returned. If set to NO, all layers (with or without popups) will be retured. maximumResults to return completion block that is invoked when the operation is complete with the result.
- Returns
- operation which can be canceled
- Since
- 100
§ identifyLayersAtScreenPoint:tolerance:returnPopupsOnly:completion:()
| - (id<AGSCancelable>) identifyLayersAtScreenPoint: | (CGPoint) | screenPoint | |
| tolerance: | (double) | tolerance | |
| returnPopupsOnly: | (BOOL) | returnPopupsOnly | |
| completion: | (void(^)(NSArray< AGSIdentifyLayerResult * > *__nullable identifyResults, NSError *__nullable error)) | completion | |
Identify (hit-test and/or spatially query) the top-most feature that appears at the specified screen coordinates in each of the map's layers.
- Parameters
-
screenPoint at which to identify features tolerance radius in points specifying how precise the identify operation should be. A value of 0 means that it should be extremely precise - only those features appearing at the exact coordinates should be returned. A value of 22 (a good default for touch displays which covers an average finger tap) means features appearing within a 44pt buffer can also be returned. Max value permitted is 100. returnPopupsOnly specifies what the identify results should contain. If set to YES, only layers with popups will be retured. If the layer does not have popups an error will be returned. If set to NO, all layers (with or without popups) will be retured. completion block that is invoked when the operation is complete with either the results or an error.
- Returns
- operation which can be canceled
- Since
- 100
§ identifyLayersAtScreenPoint:tolerance:returnPopupsOnly:maximumResultsPerLayer:completion:()
| - (id<AGSCancelable>) identifyLayersAtScreenPoint: | (CGPoint) | screenPoint | |
| tolerance: | (double) | tolerance | |
| returnPopupsOnly: | (BOOL) | returnPopupsOnly | |
| maximumResultsPerLayer: | (NSInteger) | maximumResultsPerLayer | |
| completion: | (void(^)(NSArray< AGSIdentifyLayerResult * > *__nullable identifyResults, NSError *__nullable error)) | completion | |
Identify (hit-test and/or spatially query) which features appear at the specified screen coordinates in all the map's layers.
- Parameters
-
screenPoint at which to identify features tolerance radius in points specifying how precise the identify operation should be. A value of 0 means that it should be extremely precise - only those features appearing at the exact coordinates should be returned. A value of 22 (a good default for touch displays which covers an average finger tap) means features appearing within a 44pt buffer can also be returned. Max value permitted is 100. returnPopupsOnly specifies what the identify results should contain. If set to YES, only layers with popups will be retured. If the layer does not have popups an error will be returned. If set to NO, all layers (with or without popups) will be retured. maximumResultsPerLayer to return completion block that is invoked when the operation is complete with either the results or an error.
- Returns
- operation which can be canceled
- Since
- 100
§ layerViewStateForLayer:()
| - (nullable AGSLayerViewState*) layerViewStateForLayer: | (AGSLayer *) | layer |
Get the current view state for a map or scene layer
- Parameters
-
layer to get the view state for
- Returns
- view state
- Since
- 100
§ setBookmark:completion:()
| - (id<AGSCancelable>) setBookmark: | (AGSBookmark *) | bookmark | |
| completion: | (nullable void(^)(BOOL finished)) | completion | |
Zoom or pan with animation to the viewpoint specified by the provided bookmark
- Parameters
-
bookmark whose viewpoint will be used to pan/zoom to. completion block which is invoked when operation completes. The finishedargument indicates whether the animation continued until the end without any interruption.
- Since
- 100.2
§ setViewpoint:()
| - (void) setViewpoint: | (AGSViewpoint *) | viewpoint |
Zoom or pan without animation to the specified viewpoint.
- Parameters
-
viewpoint to zoom/pan to
- Since
- 100
- See also
- setViewpoint:completion:to zoom/pan with animation.
§ setViewpoint:completion:()
| - (id<AGSCancelable>) setViewpoint: | (AGSViewpoint *) | viewpoint | |
| completion: | (nullable void(^)(BOOL finished)) | completion | |
Zoom or pan with animation to the specified viewpoint. Animates over 0.25 seconds. See setViewpoint:duration:completion: to set viewpoint that animates over a specific duration.
- Parameters
-
viewpoint to zoom/pan to completion block which is invoked when operation completes. The finishedargument indicates whether the animation continued until the end without any interruption.
- Returns
- operation which can be canceled
- Since
- 100
§ setViewpoint:duration:completion:()
| - (id<AGSCancelable>) setViewpoint: | (AGSViewpoint *) | viewpoint | |
| duration: | (double) | duration | |
| completion: | (nullable void(^)(BOOL finished)) | completion | |
Zoom or pan with animation to the specified viewpoint. Animates over the specified duration.
- Parameters
-
viewpoint to zoom/pan to duration for the zoom/pan animation in seconds completion block which is invoked when operation completes. The finishedargument indicates whether the animation continued until the end without any interruption.
- Returns
- operation which can be canceled
- Since
- 100
Property Documentation
§ attributionText
|
readnonatomiccopy |
Attribution for the geographic data currently being displayed in the view. This information is displayed in a banner along the bottom edge of the view.
- Since
- 100.1
§ attributionTextVisible
|
readwritenonatomicassign |
Specifies whether the attribution text banner (along the bottom edge of the view) should be visible . Defaults to true
- Since
- 100
§ attributionTopAnchor
|
readnonatomicstrong |
The NSLayoutAnchor you can use to layout views in relationship to the attribution text on the AGSGeoView. This is helpful if you want to place a view just above the attribution text. And when the attribution text is collapsed or expanded your view will automatically move to the correct location in relation to the attribution text.
- Since
- 100.1
§ callout
|
readnonatomicstrong |
A callout view for displaying information on the map.
- Since
- 100
§ drawStatus
|
readnonatomicassign |
Current drawing status of the view's content (map or scene)
- Since
- 100
§ graphicsOverlays
|
readnonatomicstrong |
A list of AGSGraphicsOverlay objects that can be used to display graphics on top of the view's content
- Note
- This array does not allow duplicate objects.
- Since
- 100
§ layerViewStateChangedHandler
|
readwritenonatomiccopy |
Block that is invoked whenever any map or scene layer's view state changes
- Note
- The block will be invoked on the same thread on which the event occured, which could be any arbitrary thread. You need to dispatch any UI related work to the main thread.
- Since
- 100
§ navigating
|
readnonatomicassign |
Specifies whether the view is navigating, for example, when a pan or zoom animation is in progress or if a user is interacting with the view by dragging or pinching.
- Since
- 100
§ releaseHardwareResourcesWhenBackgrounded
|
readwritenonatomicassign |
§ selectionProperties
|
readwritenonatomicstrong |
§ spatialReference
|
readnonatomicstrong |
Spatial reference defining the coordinate system in which the view's content is displayed.
- Since
- 100
§ timeExtent
|
readwritenonatomicstrong |
The current AGSTimeExtent of the AGSGeoView. The Time Extent of the AGSGeoView defines how time-enabled data is displayed. Participating layers filter their data to only show data within the time extent set on the AGSGeoView (see AGSTimeAware for details). The range of the time extent includes the start and end values (a feature at 10/24/2016 would be included in a time extent defined as 10/24/2016 - 11/14/2016). Time filtering is not enabled until a non-nil time extent is set on the AGSGeoView. When the time extent is nil on the GeoView, no time filtering is applied and all content is rendered.
- See also
AGSTimeAware::timeFilteringEnabledto see if time filtering is enabled on layers
- Since
- 100.2
§ touchDelegate
|
readwritenonatomicweak |
Delegate to be notified when touch events occur on the map.The delegate class must adopt the AGSGeoViewTouchDelegate protocol.
- Since
- 100
§ viewpointChangedHandler
|
readwritenonatomiccopy |
Block that gets invoked whenever the viewpoint changes.
- Note
- This handler may get invoked up to 60 times per second, for example, when a pan or zoom animation is in progress. Do not perform any heavy-lifting in this handler as it may adversely impact the rendering performance.
- The block will be invoked on the same thread on which the event occured, which could be any arbitrary thread. You need to dispatch any UI related work to the main thread.
- Since
- 100
§ wrapAroundEnabled
|
readnonatomicassign |
Specifies whether the view's content wraps around the dateline.
- Since
- 100
