AGSGenerateLayerOption Class Reference

Description

Options defining what data to include for a layer in a geodatabase.

Instances of this class represent options that define what data is included in a sync-enabled geodatabase for a particular layer or table.

Since

100

See also

AGSGenerateGeodatabaseParameters::layerOptions

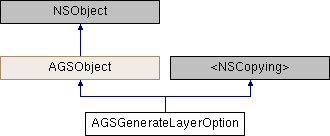

Inheritance diagram for AGSGenerateLayerOption:

Instance Methods
(instancetype)	- initWithLayerID:
(instancetype)	- initWithLayerID:includeRelated:
(instancetype)	- initWithLayerID:whereClause:

Class Methods
(instancetype)	+ generateLayerOption
(instancetype)	+ generateLayerOptionWithLayerID:
(instancetype)	+ generateLayerOptionWithLayerID:includeRelated:
(instancetype)	+ generateLayerOptionWithLayerID:whereClause:

Properties
BOOL	includeRelated
NSInteger	layerID
AGSGenerateLayerQueryOption	queryOption
BOOL	useGeometry
NSString *	whereClause

Method Documentation

generateLayerOption()

+ (instancetype) generateLayerOption

generateLayerOptionWithLayerID:()

+ (instancetype) generateLayerOptionWithLayerID:

(NSInteger)

layerID

Initialize the layer option with provided parameters

Parameters

layerID

The ID of the layer for which these options are defined. Same as AGSArcGISFeatureLayerInfo::serverLayerID

Returns

A new layer option object

Since

100

generateLayerOptionWithLayerID:includeRelated:()

+ (instancetype) generateLayerOptionWithLayerID:		(NSInteger)	layerID
includeRelated:		(BOOL)	includeRelated

Initialize the layer option with provided parameters

Parameters

layerID	The ID of the layer for which these options are defined. Same as AGSArcGISFeatureLayerInfo::serverLayerID
includeRelated	Specifies whether to include any data from this layer that is related to data in other layers in the geodatabase. This parameters is only valid if the layer participates in any relationships, and if those related layers are also included in the geodatabase.

Returns

A new layer option object

Since

100

generateLayerOptionWithLayerID:whereClause:()

+ (instancetype) generateLayerOptionWithLayerID:		(NSInteger)	layerID
whereClause:		(NSString *)	whereClause

Initialize the layer option with provided parameters

Parameters

layerID	The ID of the layer for which these options are defined. Same as AGSArcGISFeatureLayerInfo::serverLayerID.
whereClause	An attribute query to specify which features should be included in the geodatabase.

Returns

A new layer option object

Since

100

initWithLayerID:()

- (instancetype) initWithLayerID:

(NSInteger)

layerID

Initialize the layer option with provided parameters

Parameters

layerID

The ID of the layer for which these options are defined. Same as AGSArcGISFeatureLayerInfo::serverLayerID

Returns

A new layer option object

Since

100

initWithLayerID:includeRelated:()

- (instancetype) initWithLayerID:		(NSInteger)	layerID
includeRelated:		(BOOL)	includeRelated

Initialize the layer option with provided parameters

Parameters

layerID	The ID of the layer for which these options are defined. Same as AGSArcGISFeatureLayerInfo::serverLayerID
includeRelated	Specifies whether to include any data from this layer that is related to data in other layers in the geodatabase. This parameters is only valid if the layer participates in any relationships, and if those related layers are also included in the geodatabase.

Returns

A new layer option object

Since

100

initWithLayerID:whereClause:()

- (instancetype) initWithLayerID:		(NSInteger)	layerID
whereClause:		(NSString *)	whereClause

Initialize the layer option with provided parameters

Parameters

layerID	The ID of the layer for which these options are defined. Same as AGSArcGISFeatureLayerInfo::serverLayerID.
whereClause	An attribute query to specify which features should be included in the geodatabase.

Returns

A new layer option object

Since

100

Property Documentation

includeRelated

- (BOOL) includeRelated

readwritenonatomicassign

Specifies whether to include any data from this layer that is related to data in other layers in the geodatabase. This parameters is only valid if the layer participates in any relationships, and if those related layers are also included in the geodatabase.

Note

Only applicable if queryOption is set to AGSGenerateLayerQueryOptionNone

Since

100

layerID

- (NSInteger) layerID

readwritenonatomicassign

The ID of the layer for which these options are defined. Same as AGSArcGISFeatureLayerInfo::serverLayerID

Since

100

queryOption

- (AGSGenerateLayerQueryOption) queryOption

readwritenonatomicassign

Specifies how features should be included in the sync-enabled geodatabase.

Since

100

useGeometry

- (BOOL) useGeometry

readwritenonatomicassign

Determines whether to filter features based on geometry to include in the geodatabase. Only features that intersect AGSGenerateGeodatabaseParameters::extent are considered for inclusion. Default value is true

Note

Only applicable if queryOption is set to AGSGenerateLayerQueryOptionUseFilter

See also

whereClause for additional filtering option

Since

100

whereClause

- (NSString*) whereClause

readwritenonatomiccopy

An attribute query to filter which features should be included in the geodatabase. Can be nil, in which case, features are not filtered based on the where clause.

Note

Only applicable if queryOption is set to AGSGenerateLayerQueryOptionUseFilter

See also

useGeometry for additional filtering option

Since

100
