AGSFillSymbolLayer Class Reference
Description
A base class for fill symbol layers.
A base class for marker symbol layers representing a symbol layer used to render polygon geometries.
- Since
- 100.5

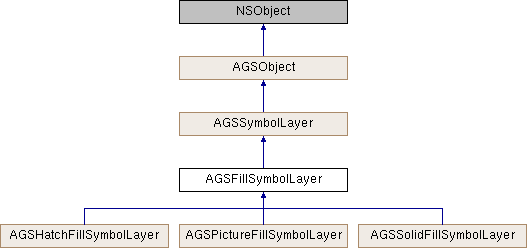

Inheritance diagram for AGSFillSymbolLayer:
Instance Methods | |
| (BOOL) | - isEqualToSymbolLayer: |
Properties | |
| BOOL | colorLocked |
| BOOL | enabled |
| AGSSymbolLayerType | type |
Method Documentation
§ isEqualToSymbolLayer:()
| - (BOOL) isEqualToSymbolLayer: | (AGSSymbolLayer *) | other |
Compares whether two symbol layers are equal.
- Parameters
-
other symbol layer to compare this symbol layer to
- Returns
- YES if the symbol layers are equal
- Since
- 100.5
Property Documentation
§ colorLocked
|
readwritenonatomicassigninherited |
Indicates whether or not the symbol layer is color locked. If YES, the layer's color will not change.
- Since
- 100.5
§ enabled
|
readwritenonatomicassigninherited |
Indicates whether or not the symbol layer is enabled. Layer will be rendered only when enabled.
- Since
- 100.5
§ type
|
readnonatomicassigninherited |
The type of the symbol layer. AGSSymbolLayerTypeUnknown is returned when an error occurs
- Since
- 100.5
