AGSFeatureLayer Class Reference

Description

A layer that can visualize vector/feature data.

Feature layers display data from feature services or supported local data sources, including shapefiles, GeoPackages, and geodatabases. Feature layers can be used to display, select, and query features in a layer. If the underlying feature service or table supports editing, you can use it with a feature layer as a basis for editing geometry, attributes, and attachments. Feature layers are used to store features associated with a utility network.

To display features in an AGSFeatureCollectionTable, use AGSFeatureCollectionLayer instead.

Features are retrieved as needed by the app. Features can be downloaded from a sync-enabled feature service when the device is connected and cached locally for use when the device is offline. Edits can then be synchronized back to the service.

Functional characteristics The following are sources that can be rendered using a feature layer.

Feature service — Backed by a service feature table; feature data from the service is cached locally in the table. New features are retrieved automatically when you navigate the map. The local table cache is discarded when the layer is disposed. If sync is enabled, features can be created, edited, and pushed to the server.

Geodatabase — Backed by a geodatabase feature table; The geodatabase can be a replica of a feature service, which allows synchronizing with a feature service, or taking the content of a feature service offline. Use a geodatabase sync task to synchronize the geodatabase with the service.

Shapefile — Backed by a shapefile feature table; use a feature layer to show the contents of shapefiles (.shp).

Geopackage — Backed by a geopackage feature table; use a feature layer to render the tables in a GeoPackage (.gpkg). A GeoPackage is a data source that conforms to the OGC GeoPackage specification. Geopackage feature tables can be edited and saved, but can't support sync, because there is no backing feature service. ArcGIS Runtime supports GeoPackage versions 1.0, 1.1, and 1.2.

Web Feature Service (WFS) — Backed by a WFS feature table. You can populate the table using Runtime query parameters or raw XML-encoded GetFeature queries. A WFS feature table only supports manual cache feature request mode. Runtime supports OGC WFS versions 2.0.0 and 2.0.2.

WFS server implementations are inconsistent in how they expect coordinates to be formatted. Some return and expect coordinates in (x,y) order, while others expect (y,x). Runtime guesses the correct order by default. This behavior can be configured with the AGSWFSFeatureTable::axisOrder and AGSWFSFeatureTable::filterAxisOrder properties.

Individual features can be queried and filtered based on spatial queries or SQL queries. Introduced at 100.3.0, string comparisons for features queried in service feature tables are case insensitive.

Local tables cannot be re-projected automatically.

Feature layers expose an AGSFeatureLayer::unsupportedJSON property that, for feature layers based on a feature service, returns a dictionary of values known to the supported web map specification but not explicitly exposed through the Runtime API. This allows you to access information that was saved with the layer but not used by Runtime. Feature layers also provide an AGSFeatureLayer::unknownJSON property to return JSON that was not recognized.

Performance characteristics As full feature information is cached locally in a geodatabase, shapefile, or GeoPackage, and features are drawn natively, this layer type offers excellent display performance when zooming and panning the map within the extent of cached features. Querying features is also efficient, enabling app functions such as real-time updates of query results in a map.

The local cache must be initially created, which can be resource-intensive for the server. The initial download to the device may require extensive network usage and subsequent local device storage. App memory increases with the number and complexity of the features cached. Network usage can be eliminated by provisioning the cache directly to the device in advance.

Feature tables backed by a service define three feature request modes. The table's feature request mode controls how and when features are requested from the service.

On interaction cache — Features are requested automatically for the visible map or scene extent. As the user pans and zooms, features are cached locally. If the user returns to an area where features have already been loaded, the table won't need to download those features again.

Manual cache — Features must be manually populated using a call to AGSServiceFeatureTable::populateFromServiceWithParameters:clearCache:outfields:completion:. Once populated, all queries are made against the local table only. AGSServiceFeatureTable::populateFromServiceWithParameters:clearCache:outfields:completion: can be called again to retrieve more features from the service.

On interaction, no cache — Features are requested automatically for the visible map extent. As the user pans and zooms, features outside the visible extent are not cached and must be downloaded again each time.

See also

AGSLayer, Sample: Feature layer (geodatabase), Sample: Feature layer query, Sample: Feature layer (shapefile), Sample: Feature layer (feature service), Sample: Service feature table (manual cache)

Since

100

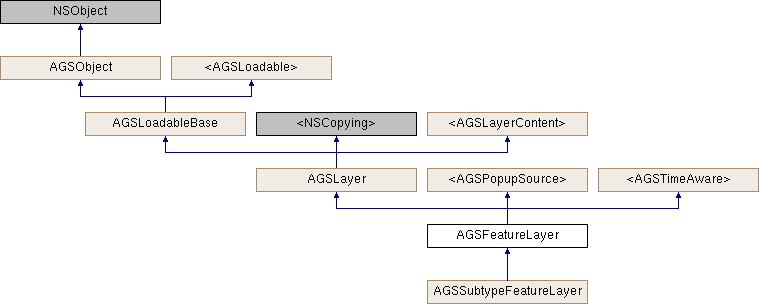

Inheritance diagram for AGSFeatureLayer:

Instance Methods
(void)	- cancelLoad
(void)	- clearSelection
(id< AGSCancelable >)	- fetchLegendInfosWithCompletion:
(id< AGSCancelable >)	- getSelectedFeaturesWithCompletion:
(instancetype)	- init
(instancetype)	- initWithFeatureTable:
(instancetype)	- initWithItem:layerID:
(BOOL)	- isEqualToLayer:
(BOOL)	- isVisibleAtScale:
(void)	- loadWithCompletion:
(void)	- resetFeaturesVisible
(void)	- resetRenderer
(void)	- retryLoadWithCompletion:
(void)	- selectFeature:
(void)	- selectFeatures:
(id< AGSCancelable >)	- selectFeaturesWithQuery:mode:completion:
(void)	- setFeature:visible:
(void)	- setFeatures:visible:
(void)	- unselectFeature:
(void)	- unselectFeatures:

Class Methods
(instancetype)	+ featureLayer
(instancetype)	+ featureLayerWithFeatureTable:
(instancetype)	+ featureLayerWithItem:layerID:

Properties
NSString *	attribution
BOOL	canChangeVisibility
NSString *	definitionExpression
AGSFeatureTable *	featureTable
AGSEnvelope *	fullExtent
AGSTimeExtent *	fullTimeExtent
BOOL	identifyEnabled
AGSItem *	item
NSMutableArray< AGSLabelDefinition * > *	labelDefinitions
BOOL	labelsEnabled
NSString *	layerDescription
NSString *	layerID
NSError *	loadError
AGSLoadStatus	loadStatus
double	maxScale
double	minScale
NSString *	name
float	opacity
AGSPopupDefinition *	popupDefinition
BOOL	popupEnabled
NSTimeInterval	refreshInterval
AGSRenderer *	renderer
AGSFeatureRenderingMode	renderingMode
BOOL	scaleSymbols
AGSLayerSceneProperties *	sceneProperties
AGSColor *	selectionColor
double	selectionWidth
BOOL	showInLegend
AGSSpatialReference *	spatialReference
NSArray< id< AGSLayerContent > > *	subLayerContents
void(^	subLayerContentsChangedHandler )(void)
BOOL	supportsTimeFiltering
BOOL	timeFilteringEnabled
AGSTimeValue *	timeInterval
AGSTimeValue *	timeOffset
NSDictionary< NSString *, id > *	unknownJSON
NSDictionary< NSString *, id > *	unsupportedJSON
BOOL	visible

Method Documentation

cancelLoad()

- (void) cancelLoad

requiredinherited

Cancels loading if it is in progress, otherwise it does nothing. This should be called carefully because other objects could be waiting for loadWithCompletion: or retryLoadWithCompletion: to complete and this will call them all back with the error of NSUserCancelledError

Since

100

clearSelection()

- (void) clearSelection

Clears selection on all features.

Since

100

featureLayer()

+ (instancetype) featureLayer

Initialize a new feature layer

Returns

A new initialized feature layer

Since

100

Deprecated:

100.1. Use featureLayerWithFeatureTable: or featureLayerWithItem:layerID: instead.

featureLayerWithFeatureTable:()

+ (instancetype) featureLayerWithFeatureTable:

(AGSFeatureTable *)

featureTable

Initialize the layer with the given AGSFeatureTable

Parameters

featureTable

The backing dataset whose features need to be drawn on the map by this layer.

Since

100

featureLayerWithItem:layerID:()

+ (instancetype) featureLayerWithItem:		(AGSItem *)	item
layerID:		(NSInteger)	layerID

Initialize the layer with the provided information

Parameters

item	representing an ArcGIS Feature Serivce. The item's type must be AGSPortalItemTypeFeatureService.
layerID	ID of an individual layer in the ArcGIS Feature service represented by the item

Returns

Initialized layer

Since

100

fetchLegendInfosWithCompletion:()

- (id<AGSCancelable>) fetchLegendInfosWithCompletion:

(void(^)(NSArray< AGSLegendInfo * > *__nullable legendInfos, NSError *__nullable error))

completion

Fetches the array of legend infos (AGSLegendInfo) for this layer.

Since

100

getSelectedFeaturesWithCompletion:()

- (id<AGSCancelable>) getSelectedFeaturesWithCompletion:

(void(^)(AGSFeatureQueryResult *__nullable featureQueryResult, NSError *__nullable error))

completion

Retrieve the list of features that have selection enabled.

Parameters

completion

block that is invoked with the results, or an error if one is encountered.

Returns

operation which can be canceled

Since

100

init()

- (instancetype) init

Initialize a new feature layer

Returns

A new initialized feature layer

Since

100

Deprecated:

100.1. Use initWithFeatureTable: or initWithItem:layerID: instead.

initWithFeatureTable:()

- (instancetype) initWithFeatureTable:

(AGSFeatureTable *)

featureTable

Initialize the layer with the given AGSFeatureTable

Parameters

featureTable

The backing dataset whose features need to be drawn on the map by this layer.

Since

100

initWithItem:layerID:()

- (instancetype) initWithItem:		(AGSItem *)	item
layerID:		(NSInteger)	layerID

Initialize the layer with the provided information

Parameters

item	representing an ArcGIS Feature Serivce. The item's type must be AGSPortalItemTypeFeatureService.
layerID	ID of an individual layer in the ArcGIS Feature service represented by the item

Returns

Initialized layer

Since

100

isEqualToLayer:()

- (BOOL) isEqualToLayer:

(AGSLayer *)

other

isVisibleAtScale:()

- (BOOL) isVisibleAtScale:

(double)

scale

Check whether this layer is visible at a given scale.

Since

100

loadWithCompletion:()

- (void) loadWithCompletion: (nullable void(^)(NSError *__nullable error))  completion

requiredinherited

Loads data for the object asynchronously. The completion block is invoked upon completion.

You can call this method any number of times, however only one attempt is made to load the data. If it is already loading, it will just continue to load (i.e. not force a reload). If it has already loaded successfully, the completion block will be invoked right away. If it has already failed to load, the completion block will be invoked right away with error previously encountered. This method supports multiple callers and will call them all back on completion. However, each caller's completion block will be invoked once and only once.

Parameters

completion

block that is invoked when object loads successfully or fails to load. An error is passed to the block if the object fails to load.

Note

The completion block is always invoked on the main thread.

Since

100

See also

- cancelLoad to cancel loading

- retryLoadWithCompletion: to force reload

resetFeaturesVisible()

- (void) resetFeaturesVisible

Reset the visibility of all features back to their original state

Since

100

resetRenderer()

- (void) resetRenderer

Reset the renderer back to the original renderer provided by the featureTable. This is useful if you, for instance, change the renderer and then want to revert back to the original.

Since

100

retryLoadWithCompletion:()

- (void) retryLoadWithCompletion: (nullable void(^)(NSError *__nullable error))  completion

requiredinherited

Tries to reload when an object has failed to load. This method should be called judiciously. It should be called when:

1. you didn't have network connectivity earlier when it failed and you want to retry now that you have connectivity
2. the server was down earlier when it failed and you want to retry
3. the request is taking too long and you want to cancel it and retry, in which case you will first call cancelLoad and then this method

If the data hasn't started loading, it will start loading. If it is already loading, it will just continue to load. If it has already loaded successfully, calls back right away. If it has already failed to load, tries again. This method supports multiple callers and will call them all back on completion. However, each caller's completion block will be invoked once and only once.

Parameters

completion

block that is invoked when object loads successfully or fails to load. An error is passed to the block if the object fails to load.

Note

The completion block is always invoked on the main thread.

Since

100

selectFeature:()

- (void) selectFeature:

(AGSFeature *)

feature

Select the specified feature. The map or scene will be updated to render the feature with selectionColor

Parameters

feature

to select

Since

100

See also

selectionColor

Note

Use selectFeatures: to enable selection on a group of features together. It provides better performance as the map will only need to be updated once.

selectFeatures:()

- (void) selectFeatures:

(NSArray< AGSFeature * > *)

features

Select the specified features. The map or scene will be updated to highlight the features with selectionColor (cyan by default).

Parameters

features

to select

Since

100

See also

selectionColor

selectFeaturesWithQuery:mode:completion:()

- (id<AGSCancelable>) selectFeaturesWithQuery:		(AGSQueryParameters *)	parameters
mode:		(AGSSelectionMode)	mode
completion:		(nullable void(^)(AGSFeatureQueryResult *__nullable featureQueryResult, NSError *__nullable error))	completion

Select features that match the query criteria. The map or scene will be updated to highlight the features with selectionColor (cyan by default).

Parameters

parameters	defining which features should be considered
mode	defining how selection needs to be applied to the features
completion	block that is invoked with the results, or an error if one is encountered.

Returns

operation which can be canceled

Since

100

setFeature:visible:()

- (void) setFeature:		(AGSFeature *)	feature
visible:		(BOOL)	visible

Change the visibility of the specified feature. The map or scene is redrawn to reflect the change.

Parameters

feature	to change
visible	If true, feature is made visible. If false, feature is hidden

Since

100

Note

Use setFeatures:visible: to change the visibility of a group of features together. It provides better performance as the map will only need to be updated once.

setFeatures:visible:()

- (void) setFeatures:		(NSArray< AGSFeature * > *)	features
visible:		(BOOL)	visible

Change the visibility of the specified features. The map or scene is updated to reflect the change.

Parameters

features	to change
visible	If true, features are made visible. If false, features are hidden

Since

100

unselectFeature:()

- (void) unselectFeature:

(AGSFeature *)

feature

Clear selection on the specified feature. The map or scene will be redrawn to reflect the change.

Parameters

feature

to unselect

Since

100

Note

Use unselectFeatures: to disable selection on a group of features together. It provides better performance as the map will only need to be updated once.

unselectFeatures:()

- (void) unselectFeatures:

(NSArray< AGSFeature * > *)

features

Clear selection on the specified features. The map or scene will be redrawn to reflect the change.

Parameters

features

to unselect

Since

100

Property Documentation

attribution

- (NSString*) attribution

readnonatomiccopyinherited

Attribution information of the layer

Since

100

canChangeVisibility

- (BOOL) canChangeVisibility

readrequirednonatomicassigninherited

Denotes whether the layer can change visibility or not.

Since

100

definitionExpression

- (NSString*) definitionExpression

readwritenonatomiccopy

An expression which is a SQL statement where clause to filter out the features to be displayed. The definition expression string uses the SQL-92 where clause syntax (https://en.wikipedia.org/wiki/SQL-92). Be sure to escape special characters in the expression string as required for your platform. The DATE keyword expects the date format yyyy-mm-dd and the TIMESTAMP keyword expects the time stamp format yyyy-mm-dd hh:mm:ss. See the ArcGIS Blog article entitled "Querying Feature Services Date-Time Queries" (https://www.esri.com/arcgis-blog/products/api-rest/data-management/querying-feature-services-date-time-queries/) for more information.

Since

100

featureTable

- (AGSFeatureTable*) featureTable

readnonatomicstrong

The backing dataset whose features are drawn on the map by this layer.

Since

100

fullExtent

- (AGSEnvelope*) fullExtent

readnonatomicstronginherited

Full extent of the layer.

Since

100

fullTimeExtent

- (AGSTimeExtent*) fullTimeExtent

readnonatomicstronginherited

The full time extent of the layer 100.2

identifyEnabled

- (BOOL) identifyEnabled

readnonatomicassigninherited

Specifies whether the layer supports identify.

Since

100

item

- (AGSItem*) item

readnonatomicstronginherited

The item the layer has been created from.

Since

100

labelDefinitions

- (NSMutableArray<AGSLabelDefinition*>*) labelDefinitions

readnonatomicstrong

Defines how labels should be displayed.

Since

100.1

labelsEnabled

- (BOOL) labelsEnabled

readwritenonatomicassign

Indicates whether or not features will be labelled on this layer.

Since

100

layerDescription

- (NSString*) layerDescription

readwritenonatomiccopyinherited

The layer's description

Since

100

layerID

- (NSString*) layerID

readwritenonatomiccopyinherited

The layer's ID specified in the web map item of ArcGIS Online or an on-premises portal.

Since

100

loadError

- (NSError*) loadError

readnonatomicstronginherited

The error that was encountered during the most recent load operation. Will be nil if the operation succeeded.

Since

100

loadStatus

- (AGSLoadStatus) loadStatus

readrequirednonatomicassigninherited

Status of the load operation.

Since

100

maxScale

- (double) maxScale

readwritenonatomicassigninherited

The maximum scale at which this layer is visible. If the map or scene is zoomed in beyond this scale, the layer will not be visible. A value of 0 means there is no maximum scale threshold and the layer will be visible at the smallest scale available for the map or scene.

Since

100

minScale

- (double) minScale

readwritenonatomicassigninherited

The minimum scale at which this layer is visible. If the map or scene is zoomed out beyond this scale, the layer will not be visible. A value of 0 means there is no minimum scale threshold and the layer will be visible at the largest scale available for the map or scene.

Since

100

name

- (NSString*) name

readwritenonatomiccopyinherited

The name of the layer

Since

100

opacity

- (float) opacity

readwritenonatomicassigninherited

The opacity of this layer as a value between 0 (fully transparent) and 1 (fully opaque). Default value is 1.

Since

100

popupDefinition

- (AGSPopupDefinition*) popupDefinition

readwritenonatomicstronginherited

The AGSPopupDefinition associated with the popup source. nil if an error occurs or if the popup source is not associated with a pop-up definition.

Since

100

popupEnabled

- (BOOL) popupEnabled

readwriterequirednonatomicassigninherited

Indicates whether popups are enabled on this source.

Since

100

refreshInterval

- (NSTimeInterval) refreshInterval

readwritenonatomicassign

Time interval (in seconds) specifying how often the layer should auto-refresh its contents. If 0 or less is specified, the layer will not auto-refresh.

Since

100.1

renderer

- (AGSRenderer*) renderer

readwritenonatomicstrong

The renderer specifying how the features should be symbolized

Since

100

renderingMode

- (AGSFeatureRenderingMode) renderingMode

readwritenonatomicassign

Mode used for rendering this layer. Static mode is better suited for displaying large datasets (in terms of number of vertices) and for complex symbology because it does not update the layer's display while pan/zoom operations are in progress. Dynamic mode is better suited for smaller datasets that are updating frequently or for more interactive experience as the layer's display is updated continuously while pan/zoom operations are in progress.

Since

100.2

See also

AGSLoadSettings to specify rendering mode for all feature layers in a map or scene

scaleSymbols

- (BOOL) scaleSymbols

readwritenonatomicassign

Whether the layer's symbols and labels honor the Map reference scale. If the Map has a positive reference scale, and the layer honors it, then symbols and labels will be drawn at their specified size when the viewing scale is the same as the reference scale, and will grow or shrink as the view zooms in or out, to keep the symbol a fixed size on the map. If the Map has no reference scale, the reference scale is zero or the FeatureLayer's scaleSymbols property is false, then the symbols and labels will be drawn at their fixed screen size.

Since

100.5

sceneProperties

- (AGSLayerSceneProperties*) sceneProperties

readwritenonatomicstrong

Properties to apply only when rendering data in 3D scenes using AGSSceneView

Since

100.2

selectionColor

- (AGSColor*) selectionColor

readwritenonatomicstrong

The color to use for drawing a halo around selected features. Defaults to cyan color.

Since

100

Deprecated:

100.4 Use color property exposed through AGSGeoView::selectionProperties

selectionWidth

- (double) selectionWidth

readwritenonatomicassign

The width (in points) of the selection halo

Since

100

Deprecated:

100.4 This property will be removed in a future version

showInLegend

- (BOOL) showInLegend

readwritenonatomicassigninherited

Indicates whether to show legend information.

Since

100

spatialReference

- (AGSSpatialReference*) spatialReference

readnonatomicstronginherited

The spatial reference of the layer.

Since

100

subLayerContents

- (NSArray<id<AGSLayerContent> >*) subLayerContents

readnonatomiccopyinherited

This layer's sub-layers.

Since

100

subLayerContentsChangedHandler

- (void(^ subLayerContentsChangedHandler) (void))

readwritenonatomiccopyinherited

Block that is invoked when the sub layer contents changes.

Note

The block will be invoked on the same thread on which the event occured, which could be any arbitrary thread. You need to dispatch any UI related work to the main thread.

Since

100

supportsTimeFiltering

- (BOOL) supportsTimeFiltering

readnonatomicassigninherited

Indicates whether the layer supports filtering its contents by a time range 100.2

timeFilteringEnabled

- (BOOL) timeFilteringEnabled

readwritenonatomicassigninherited

Indicates whether the layer must use the time extent defined on the owning AGSGeoView::timeExtent and filter its content. Only applicable if the layer supports time filtering (see supportsTimeFiltering) 100.2

timeInterval

- (AGSTimeValue*) timeInterval

readnonatomicstronginherited

Returns the suggested time slider step size for this time aware layer. Can be nil if no time interval is suggested for this time aware object.

100.2

timeOffset

- (AGSTimeValue*) timeOffset

readwritenonatomicstronginherited

A time offset for this layer. This is useful when data from different layers belong to different time periods and must be displayed together. The offset it applied on-the-fly, it does not change the actual data of the layer. The time offset is subtracted from the time extent set on the owning AGSGeoView::timeExtent before the extent is used to filter content from the layer. 100.2

unknownJSON

- (NSDictionary<NSString *, id>*) unknownJSON

readnonatomiccopy

Unknown data from the source JSON. Unknown JSON is a dictionary of values that was in the source JSON but was not parsed by the Runtime.

See also

NSDictionary

Since

100.7

unsupportedJSON

- (NSDictionary<NSString *, id>*) unsupportedJSON

readnonatomiccopy

Unsupported data from the source JSON. Unsupported JSON is a dictionary of values that are supported by web maps, but not exposed through the native Runtime API

See also

NSDictionary

Since

100.7

visible

- (BOOL) visible

readwritenonatomicassigninherited

Denotes whether the layer is visible or not.

Since

100
