AGSExportTileCacheTask Class Reference

Description

A task to export and download tile packages.

Instances of this class represent a task that can be used to download tiles (as a tile package, .tpk file) from supporting tiled ArcGIS Map or Image services. The service could be hosted in the cloud on ArcGIS Online or on-premises with ArcGIS server.

Since

100

See also

AGSTileCache

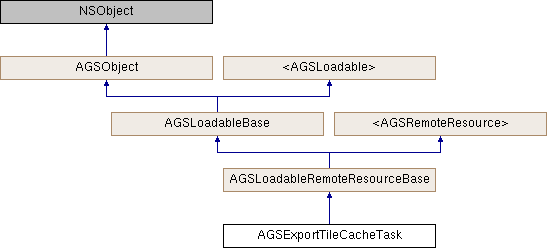

Inheritance diagram for AGSExportTileCacheTask:

Instance Methods
(void)	- cancelLoad
(AGSEstimateTileCacheSizeJob *)	- estimateTileCacheSizeJobWithParameters:
(AGSExportTileCacheJob *)	- exportTileCacheJobWithParameters:downloadFileURL:
(id< AGSCancelable >)	- exportTileCacheParametersWithAreaOfInterest:minScale:maxScale:completion:
(instancetype)	- initWithURL:
(void)	- loadWithCompletion:
(void)	- retryLoadWithCompletion:

Class Methods
(instancetype)	+ exportTileCacheTaskWithURL:

Properties
AGSCredential *	credential
NSError *	loadError
AGSLoadStatus	loadStatus
AGSArcGISMapServiceInfo *	mapServiceInfo
AGSRequestConfiguration *	requestConfiguration
NSURL *	URL

Method Documentation

cancelLoad()

- (void) cancelLoad

requiredinherited

Cancels loading if it is in progress, otherwise it does nothing. This should be called carefully because other objects could be waiting for loadWithCompletion: or retryLoadWithCompletion: to complete and this will call them all back with the error of NSUserCancelledError

Since

100

estimateTileCacheSizeJobWithParameters:()

- (AGSEstimateTileCacheSizeJob*) estimateTileCacheSizeJobWithParameters:

(AGSExportTileCacheParameters *)

parameters

Returns a job which can be used to get a size estimate of the tile package contaning tiles specified by the parameters. The result of the job will be of type AGSEstimateTileCacheSizeResult.

Note

The job is dormant and needs to be explicitly started using startWithStatusHandler:completion: (AGSEstimateTileCacheSizeJob)

Parameters

parameters

specifying which tiles to include in the tile package

Returns

job representing the progress on the server. The result of the job will be of type AGSEstimateTileCacheSizeResult

Since

100

exportTileCacheJobWithParameters:downloadFileURL:()

- (AGSExportTileCacheJob*) exportTileCacheJobWithParameters:		(AGSExportTileCacheParameters *)	parameters
downloadFileURL:		(NSURL *)	downloadFileURL

Returns a job which can be used to generate and download a tile package containing tiles specified by the parameters. The result of the job will be of type AGSTileCache

Note

The job is dormant and needs to be explicitly started using startWithStatusHandler:completion: (AGSExportTileCacheJob)

Parameters

parameters	specifying which tiles to include in the tile package
downloadFileURL	where the tile package should be saved on disk, including the desired file name ending with the .tpk file extension.

Returns

job representing the progress on the server. The result of the job will be of type AGSTileCache

Since

100

exportTileCacheParametersWithAreaOfInterest:minScale:maxScale:completion:()

- (id<AGSCancelable>) exportTileCacheParametersWithAreaOfInterest:		(AGSGeometry *)	areaOfInterest
minScale:		(double)	minScale
maxScale:		(double)	maxScale
completion:		(void(^)(AGSExportTileCacheParameters *__nullable exportTileCacheParameters, NSError *__nullable error))	completion

A convenience method to get properly initialized parameters for exporting tiles. It will calculate the levels of detail (LODs) required based on the specified min and max scale and the tiling scheme of the service.

Parameters

areaOfInterest	A polygon or envelope geometry representing the geographic area for which tiles are needed. Point and Polyline geometries are not supported
minScale	The minimum map scale for which tiles are needed. There won't be any tiles when the map is zoomed out beyond this scale.
maxScale	The maximum map scale for which tiles are needed. There won't be any tiles when the map is zoomed in beyond this scale.
completion	block that is invoked when the operation is complete with either the results or an error.

Returns

operation which can be canceled

Since

100

exportTileCacheTaskWithURL:()

+ (instancetype) exportTileCacheTaskWithURL:

(NSURL *)

URL

Initialize the task with a URL to a tiled ArcGIS Map or Image service

Parameters

URL	to a tiled ArcGIS Map or Image service

Returns

initialized task

Since

100

initWithURL:()

- (instancetype) initWithURL:

(NSURL *)

URL

Initialize the task with a URL to a tiled ArcGIS Map or Image service

Parameters

URL	to a tiled ArcGIS Map or Image service

Returns

initialized task

Since

100

loadWithCompletion:()

- (void) loadWithCompletion: (nullable void(^)(NSError *__nullable error))  completion

requiredinherited

Loads data for the object asynchronously. The completion block is invoked upon completion.

You can call this method any number of times, however only one attempt is made to load the data. If it is already loading, it will just continue to load (i.e. not force a reload). If it has already loaded successfully, the completion block will be invoked right away. If it has already failed to load, the completion block will be invoked right away with error previously encountered. This method supports multiple callers and will call them all back on completion. However, each caller's completion block will be invoked once and only once.

Parameters

completion

block that is invoked when object loads successfully or fails to load. An error is passed to the block if the object fails to load.

Note

The completion block is always invoked on the main thread.

Since

100

See also

- cancelLoad to cancel loading

- retryLoadWithCompletion: to force reload

retryLoadWithCompletion:()

- (void) retryLoadWithCompletion: (nullable void(^)(NSError *__nullable error))  completion

requiredinherited

Tries to reload when an object has failed to load. This method should be called judiciously. It should be called when:

1. you didn't have network connectivity earlier when it failed and you want to retry now that you have connectivity
2. the server was down earlier when it failed and you want to retry
3. the request is taking too long and you want to cancel it and retry, in which case you will first call cancelLoad and then this method

If the data hasn't started loading, it will start loading. If it is already loading, it will just continue to load. If it has already loaded successfully, calls back right away. If it has already failed to load, tries again. This method supports multiple callers and will call them all back on completion. However, each caller's completion block will be invoked once and only once.

Parameters

completion

block that is invoked when object loads successfully or fails to load. An error is passed to the block if the object fails to load.

Note

The completion block is always invoked on the main thread.

Since

100

Property Documentation

credential

- (AGSCredential*) credential

readwritenonatomicstronginherited

Security credentials to access the remote resource. Only applicable if the resource is secured.

Since

100

loadError

- (NSError*) loadError

readnonatomicstronginherited

The error that was encountered during the most recent load operation. Will be nil if the operation succeeded.

Since

100

loadStatus

- (AGSLoadStatus) loadStatus

readrequirednonatomicassigninherited

Status of the load operation.

Since

100

mapServiceInfo

- (AGSArcGISMapServiceInfo*) mapServiceInfo

readnonatomicstrong

Metadata about the ArcGIS Map service that the task is using

Since

100

requestConfiguration

- (AGSRequestConfiguration*) requestConfiguration

readwritenonatomicstronginherited

The AGSRequestConfiguration object which defines the behavior and policies to use when accessing the remote resource. The default will be nil. If it is nil the [AGSRequestConfiguration globalConfiguration] will be used.

Since

100

URL

- (NSURL*) URL

readrequirednonatomicstronginherited

The URL of the remote resource.

Since

100
