AGSBasemap Class Reference

Description

A basemap for a map or a scene.

Instances of this class represent a basemap for a map or a scene.

A basemap helps orient the user and provides a geographical context for the content you want to display in the scene. It is used for locational reference and provides a framework on which you can overlay operational layers. Thus, the basemap serves as a foundation and provides a framework for working with information geographically. It's content is typically static and does not change frequently. For eg, streets, parcel boundaries, or geographic features such as rivers. Some basemaps also contain reference layers, such as labels, which are drawn on top of operational layers.

ArcGIS Online provides a number of ready-to-use basemaps such as streetsBasemap (AGSBasemap), topographicBasemap (AGSBasemap), etc, but you can also create your own basemap by mashing up layers. A basemap is composed of a collection of baseLayers, and referenceLayers. Base layers are displayed at the bottom, and reference layers are displayed at the top, with other operational layers sandwiched between them. The content of a basemap is typically static and does not change frequently.

Since

100

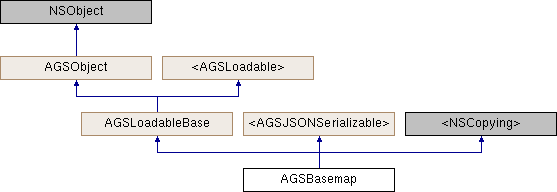

Inheritance diagram for AGSBasemap:

Instance Methods
(void)	- cancelLoad
(instancetype)	- init
(instancetype)	- initWithBaseLayer:
(instancetype)	- initWithBaseLayers:referenceLayers:
(instancetype)	- initWithItem:
(nullable instancetype)	- initWithURL:
(void)	- loadWithCompletion:
(void)	- retryLoadWithCompletion:
(nullable id)	- toJSON:

Class Methods
(instancetype)	+ basemap
(instancetype)	+ basemapWithBaseLayer:
(instancetype)	+ basemapWithBaseLayers:referenceLayers:
(instancetype)	+ basemapWithItem:
(nullable instancetype)	+ basemapWithURL:
(instancetype)	+ darkGrayCanvasVectorBasemap
(nullable id< AGSJSONSerializable >)	+ fromJSON:error:
(instancetype)	+ imageryBasemap
(instancetype)	+ imageryWithLabelsBasemap
(instancetype)	+ imageryWithLabelsVectorBasemap
(instancetype)	+ lightGrayCanvasBasemap
(instancetype)	+ lightGrayCanvasVectorBasemap
(instancetype)	+ nationalGeographicBasemap
(instancetype)	+ navigationVectorBasemap
(instancetype)	+ oceansBasemap
(instancetype)	+ openStreetMapBasemap
(instancetype)	+ streetsBasemap
(instancetype)	+ streetsNightVectorBasemap
(instancetype)	+ streetsVectorBasemap
(instancetype)	+ streetsWithReliefVectorBasemap
(instancetype)	+ terrainWithLabelsBasemap
(instancetype)	+ terrainWithLabelsVectorBasemap
(instancetype)	+ topographicBasemap
(instancetype)	+ topographicVectorBasemap

Properties
NSMutableArray< AGSLayer * > *	baseLayers
AGSItem *	item
NSError *	loadError
AGSLoadStatus	loadStatus
NSString *	name
NSMutableArray< AGSLayer * > *	referenceLayers
NSDictionary< NSString *, id > *	unknownJSON
NSDictionary< NSString *, id > *	unsupportedJSON

Method Documentation

basemap()

+ (instancetype) basemap

Instantiates a new basemap.

Since

100

basemapWithBaseLayer:()

+ (instancetype) basemapWithBaseLayer:

(AGSLayer *)

layer

Instantiates a new basemap.

Parameters

layer

The layer to be used as the basemap's base layer

Since

100

basemapWithBaseLayers:referenceLayers:()

+ (instancetype) basemapWithBaseLayers:		(NSArray< AGSLayer * > *)	baseLayers
referenceLayers:		(nullable NSArray< AGSLayer * > *)	referenceLayers

Instantiates a new basemap.

Parameters

baseLayers	The layers to be used as the basemap's base layers
referenceLayers	The layers to be used as the basemap's reference layers

Since

100

basemapWithItem:()

+ (instancetype) basemapWithItem:

(AGSItem *)

item

Instantiates a new basemap.

Parameters

item	The web map item on ArcGIS Online or an on-premise portal that represents a basemap

Note

The item must be of type AGSPortalItemTypeWebMap.

Since

100

basemapWithURL:()

+ (nullable instancetype) basemapWithURL:

(NSURL *)

URL

Instantiate a basemap with a URL to a portal item which is a web basemap.

Parameters

URL	of the web basemap on ArcGIS Online or an on-premises portal

Returns

The basemap created from the URL, or nil if an invalid URL is passed.

Since

100.4

cancelLoad()

- (void) cancelLoad

requiredinherited

Cancels loading if it is in progress, otherwise it does nothing. This should be called carefully because other objects could be waiting for loadWithCompletion: or retryLoadWithCompletion: to complete and this will call them all back with the error of NSUserCancelledError

Since

100

darkGrayCanvasVectorBasemap()

+ (instancetype) darkGrayCanvasVectorBasemap

Instantiates a new basemap based on ArcGIS Online Dark Gray Canvas basemap.

Since

100

fromJSON:error:()

+ (nullable id<AGSJSONSerializable>) fromJSON: (id)  JSONObject error: (NSError **)  error

staticrequiredinherited

Initializes and returns an object from its JSON representation.

Parameters

JSONObject	NSDictionary or NSArray containing the JSON.
error	encountered during the operation, if any.

Since

100

imageryBasemap()

+ (instancetype) imageryBasemap

Instantiates a new basemap based on ArcGIS Online World Imagery basemap.

Since

100

imageryWithLabelsBasemap()

+ (instancetype) imageryWithLabelsBasemap

Instantiates a new basemap based on ArcGIS Online Imagery with Labels basemap.

Since

100

imageryWithLabelsVectorBasemap()

+ (instancetype) imageryWithLabelsVectorBasemap

Instantiates a new basemap based on ArcGIS Online Imagery Hybrid basemap.

Since

100

init()

- (instancetype) init

initWithBaseLayer:()

- (instancetype) initWithBaseLayer:

(AGSLayer *)

layer

Instantiates a new basemap.

Parameters

layer

The layer to be used as the basemap's base layer

Since

100

initWithBaseLayers:referenceLayers:()

- (instancetype) initWithBaseLayers:		(NSArray< AGSLayer * > *)	baseLayers
referenceLayers:		(nullable NSArray< AGSLayer * > *)	referenceLayers

Instantiates a new basemap.

Parameters

baseLayers	The layers to be used as the basemap's base layers
referenceLayers	The layers to be used as the basemap's reference layers

Since

100

initWithItem:()

- (instancetype) initWithItem:

(AGSItem *)

item

Instantiates a new basemap.

Parameters

item	The item on ArcGIS Online or an on-premise portal that represents a basemap

Since

100

initWithURL:()

- (nullable instancetype) initWithURL:

(NSURL *)

URL

Instantiate a basemap with a URL to a portal item which is a web basemap.

Parameters

URL	of the web basemap on ArcGIS Online or an on-premises portal

Returns

The basemap created from the URL, or nil if an invalid URL is passed.

Since

100.4

lightGrayCanvasBasemap()

+ (instancetype) lightGrayCanvasBasemap

Instantiates a new basemap based on ArcGIS Online Light Gray Canvas basemap.

Since

100

lightGrayCanvasVectorBasemap()

+ (instancetype) lightGrayCanvasVectorBasemap

Instantiates a new basemap based on ArcGIS Online Light Gray Canvas basemap.

Since

100

loadWithCompletion:()

- (void) loadWithCompletion: (nullable void(^)(NSError *__nullable error))  completion

requiredinherited

Loads data for the object asynchronously. The completion block is invoked upon completion.

You can call this method any number of times, however only one attempt is made to load the data. If it is already loading, it will just continue to load (i.e. not force a reload). If it has already loaded successfully, the completion block will be invoked right away. If it has already failed to load, the completion block will be invoked right away with error previously encountered. This method supports multiple callers and will call them all back on completion. However, each caller's completion block will be invoked once and only once.

Parameters

completion

block that is invoked when object loads successfully or fails to load. An error is passed to the block if the object fails to load.

Note

The completion block is always invoked on the main thread.

Since

100

See also

- cancelLoad to cancel loading

- retryLoadWithCompletion: to force reload

nationalGeographicBasemap()

+ (instancetype) nationalGeographicBasemap

Instantiates a new basemap based on ArcGIS Online National Geographic World basemap.

Since

100

navigationVectorBasemap()

+ (instancetype) navigationVectorBasemap

Instantiates a new basemap based on ArcGIS Online World Navigation Map basemap.

Since

100

oceansBasemap()

+ (instancetype) oceansBasemap

Instantiates a new basemap based on ArcGIS Online Oceans basemap.

Since

100

openStreetMapBasemap()

+ (instancetype) openStreetMapBasemap

Instantiates a new basemap based on OpenStreetMap basemap.

Since

100

retryLoadWithCompletion:()

- (void) retryLoadWithCompletion: (nullable void(^)(NSError *__nullable error))  completion

requiredinherited

Tries to reload when an object has failed to load. This method should be called judiciously. It should be called when:

1. you didn't have network connectivity earlier when it failed and you want to retry now that you have connectivity
2. the server was down earlier when it failed and you want to retry
3. the request is taking too long and you want to cancel it and retry, in which case you will first call cancelLoad and then this method

If the data hasn't started loading, it will start loading. If it is already loading, it will just continue to load. If it has already loaded successfully, calls back right away. If it has already failed to load, tries again. This method supports multiple callers and will call them all back on completion. However, each caller's completion block will be invoked once and only once.

Parameters

completion

block that is invoked when object loads successfully or fails to load. An error is passed to the block if the object fails to load.

Note

The completion block is always invoked on the main thread.

Since

100

streetsBasemap()

+ (instancetype) streetsBasemap

Instantiates a new basemap based on ArcGIS Online World Street basemap.

Since

100

streetsNightVectorBasemap()

+ (instancetype) streetsNightVectorBasemap

Instantiates a new basemap based on ArcGIS Online World Street Map (Night) basemap.

Since

100

streetsVectorBasemap()

+ (instancetype) streetsVectorBasemap

Instantiates a new basemap based on ArcGIS Online World Street Map basemap.

Since

100

streetsWithReliefVectorBasemap()

+ (instancetype) streetsWithReliefVectorBasemap

Instantiates a new basemap based on ArcGIS Online Streets (with Relief) basemap.

Since

100

terrainWithLabelsBasemap()

+ (instancetype) terrainWithLabelsBasemap

Instantiates a new basemap based on ArcGIS Online Terrain with Labels basmap.

Since

100

terrainWithLabelsVectorBasemap()

+ (instancetype) terrainWithLabelsVectorBasemap

Instantiates a new basemap based on ArcGIS Online Terrain with Labels basemap.

Since

100

toJSON:()

- (nullable id) toJSON: (NSError **)  error

requiredinherited

Returns JSON representation for this object.

Parameters

error

encountered during the operation, if any.

Returns

NSDictionary or NSArray containing the JSON.

Since

100

Reimplemented in AGSPortalItem.

topographicBasemap()

+ (instancetype) topographicBasemap

Instantiates a new basemap based on ArcGIS Online World Topographic basemap.

Since

100

topographicVectorBasemap()

+ (instancetype) topographicVectorBasemap

Instantiates a new basemap based on ArcGIS Online Topographic basemap.

Since

100

Property Documentation

baseLayers

- (NSMutableArray<AGSLayer*>*) baseLayers

readnonatomicstrong

The base layers of this basemap. Base layers are displayed at the bottom in a mapview, and reference layers are displayed at the top, with the map's operational layers sandwiched between them. The layers are drawn in a bottom-up fashion with the 0th layer in the list drawn first, next layer drawn on top of the previous one, and so on.

Note

This array does not allow duplicate objects.

Since

100

item

- (AGSItem*) item

readnonatomicstrong

The portal item that was used to create the basemap

Since

100

loadError

- (NSError*) loadError

readnonatomicstronginherited

The error that was encountered during the most recent load operation. Will be nil if the operation succeeded.

Since

100

loadStatus

- (AGSLoadStatus) loadStatus

readrequirednonatomicassigninherited

Status of the load operation.

Since

100

name

- (NSString*) name

readwritenonatomiccopy

The name of the basemap

Since

100

referenceLayers

- (NSMutableArray<AGSLayer*>*) referenceLayers

readnonatomicstrong

The reference layers of this basemap. Base layers are displayed at the bottom in a mapview, and reference layers are displayed at the top, with the map's operational layers sandwiched between them. The layers are drawn in a bottom-up fashion with the 0th layer in the list drawn first, next layer drawn on top of the previous one, and so on.

Note

This array does not allow duplicate objects.

Since

100

unknownJSON

- (NSDictionary<NSString*,id>*) unknownJSON

readrequirednonatomiccopyinherited

A dictionary of values that was in the source JSON but was unparsed by API.

Returns

NSDictionary containing the unknown JSON.

Since

100

unsupportedJSON

- (NSDictionary<NSString*,id>*) unsupportedJSON

readnonatomiccopyinherited

A dictionary of values that are supported by the REST API, but not exposed through the SDK API.

Returns

NSDictionary containing the unsupported JSON.

Since

100
